ESPECIFICACIONES:
Name: 650nm 100mW Rojo Crosshair laser module
Longitud de onda de salida: 650nm
Potencia de salida: ≤100mW (can be customized)

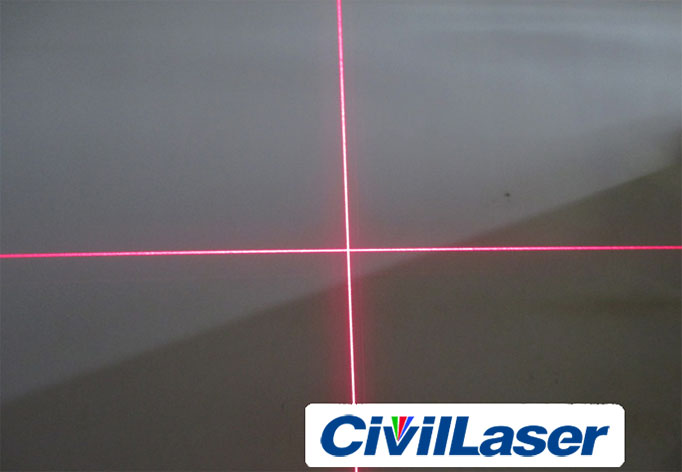

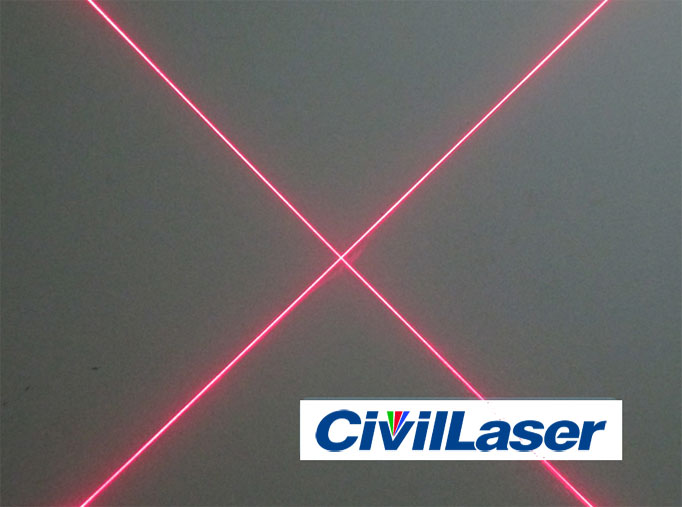

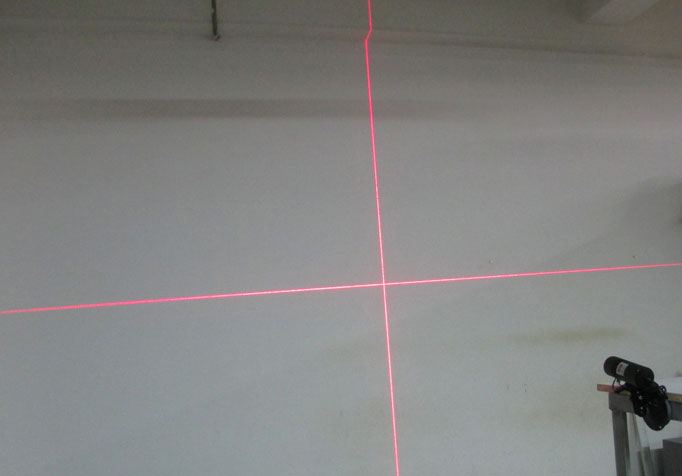

Forma láser: Crosshair
Tipo de láser: Visible laser, Rojo color
Color exterior: Black
Tamaño: φ22*110mm (can be customized)
Current: ≤160mA (Determined by the different tube core and power)
Tensión de funcionamiento: DC2.8-5V
Operation mode: continuous laser
Incentives: electric excitation laser
Working medium: semiconductor laser
Operating Temperature: -10--60℃
Storage Temperature: -40℃~80℃
Line width: 1.2m (can be customized)
Garantía: 12 Months Factory warranty
Work life: more than 8000 hours
Structure Features: high quality laser diode + metal shell + High quality lens + constant power circuit board + Wireway
El paquete incluye:
1* Rojo Cross-hair laser module;
1* Laser stand;
1* Power supply;

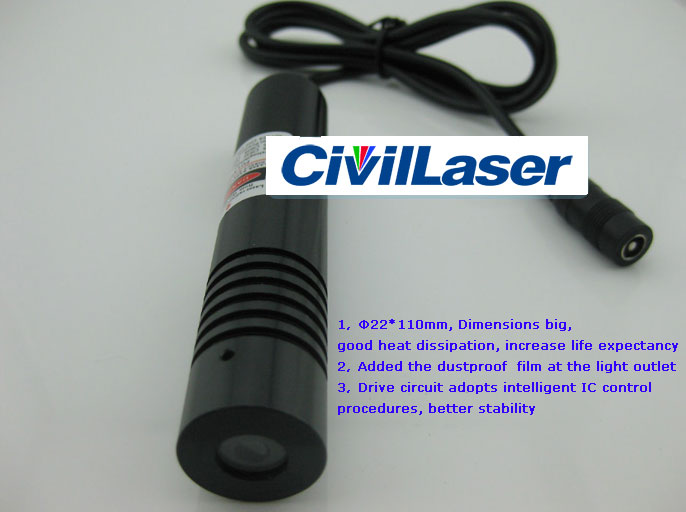

This is the upgraded version of laser spot, the advantages of this laser module are:
1, The large size, beneficial to the heat dissipation, increase life expectancy;
2, The drive circuit controlled by intelligent IC, the stability is better;
3, Oxidation blackening shell, permanent anti-static;
4, Added the window film at the light outlet, can prevent the dust;
5, Use the latest high technical laser diode, can withstand temperatures up to 60 degrees;
6,Use thermal conductivity of silica gel and AD glue filled the inside, to ensure the full heat, vibration and falling;
7,Tail power line using high temperature line, good toughness and corrosion resistance.
