Ytterbium Doped Yttrium Aluminum Garnet Yb:YAG Laser Crystals Can be Customized

Nota:
1. This is a customized product.
2. $55 is a deposit, not the final price of the product.
3. The main factors affecting the price: quantity, size, processing index.
4. Please provide crystal processing drawings or crystal size, membranes, quantity, processing index. (Contact us
5. Crystal customization time: 3~6 weeks.
6. Garantía: 1 year

It is more suitable for diode-pumping than the traditional Nd-doped systems. It can be pumped at 0.94μm laser output. Compared with the commonly used Nd:YAG crystal, Yb:YAG crystal has a much larger absorption bandwidth to reduce thermal management requirements for diode lasers, a longer upper-state lifetime, three to four times lower thermal loading per unit pump power. Yb:YAG crystal is expected to replace Nd:YAG crystal for high power diode-pumped lasers and other potential applications.

[Features]
1. Very low fractional heating, less than 11%.
2. Very high slope efficiency.
3. Broad absorption bands, about 8nm@940nm.
4. No excited-state absorption or up-conversion.
5. Conveniently pumped by reliable InGaAs diodes at 940nm(or 970nm).
6. High thermal conductivity and large mechanical strength.
7. High optical quality.

[Specification]

Prameter Value
Doping(atm%) 1.0% ~ 35%
Orientation <111> or <100> crystalline direction
Wavefront Distortion λ/10 per inch @ 632.8 nm
Dimension Tolerances rods with diameter: +0.0/-0.05 mm , Length: ±0.1 mm
Surface Quality 10/5 Scratch/Dig MIL-O-1380A
Parallelism < 10″
Perpendicularity < 5′
Clear Aperture > 90%
Surface Flatness < λ/10 @ 632.8 nm
Chamfer < 0.1 mm @ 45o
Barrel Finish 50-80 micro-inch (RMS)
Size Upon customer request
Coating AR/HR/PR coating upon customer’s request
Damage Threshold 750MW/CM² at 1064nm, TEM00, 10ns, 10Hz
Quality Warranty Period One year under proper use

Slabs, thread rod, Er:YAG, Nd:YAG, Cr:YAG,Ce:YAG, Tm:YAG,Ho:YAG and other ion doped YAG crystals are also available upon request.


About Yb:YAG crystals price:

Concentration Size Membranes Price (1~5 pcs) Price (>10 pcs)
  12*1*10/10*1*10 S1/S2:AR@1030nm+940nm $382
Note For prices of other customized crystals, please contact us.

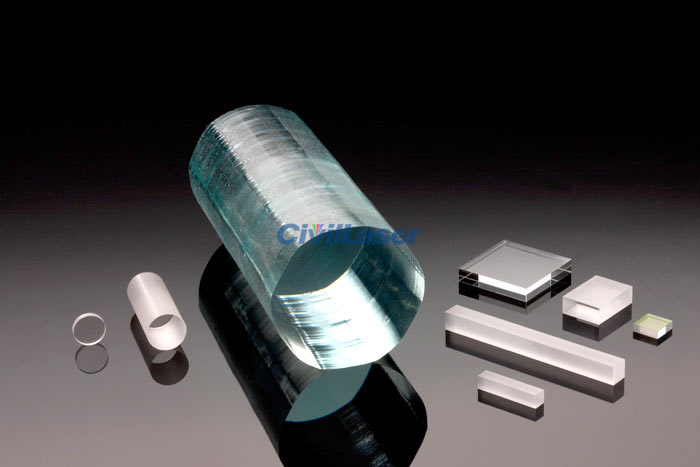

Yb:YAG laser crystals

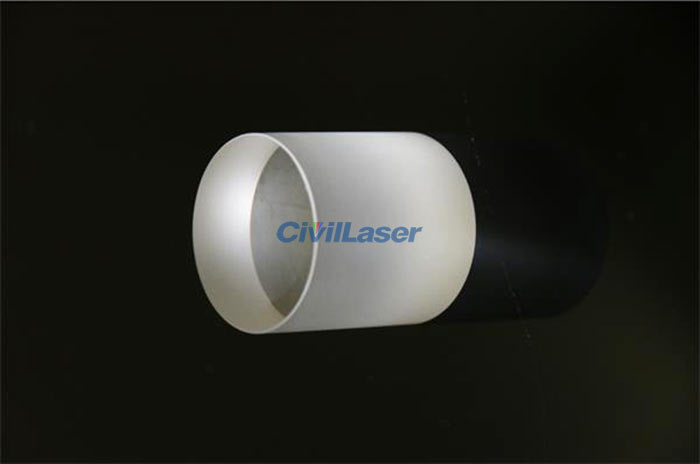

Yb:YAG laser crystals

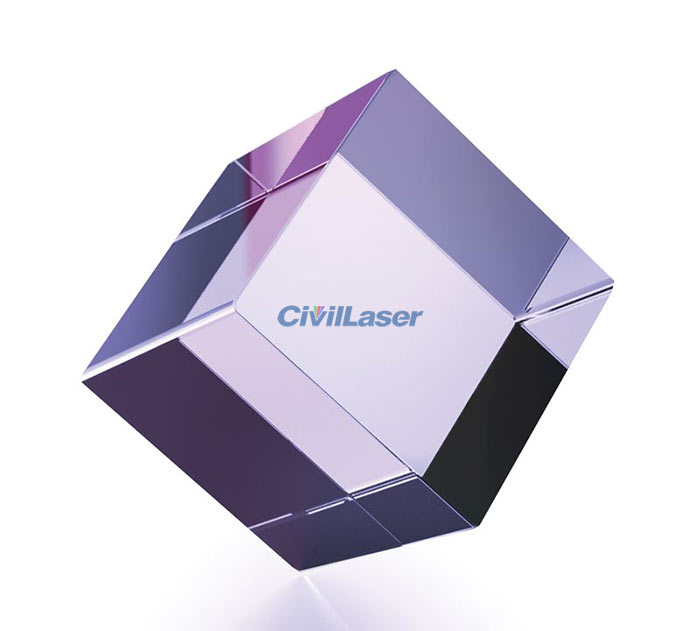

Yb:YAG laser crystals

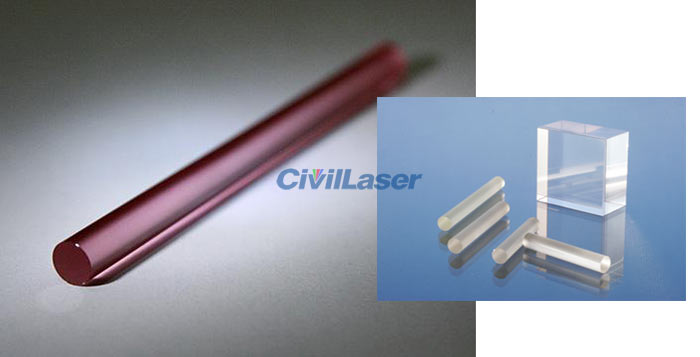

Yb:YAG laser crystals

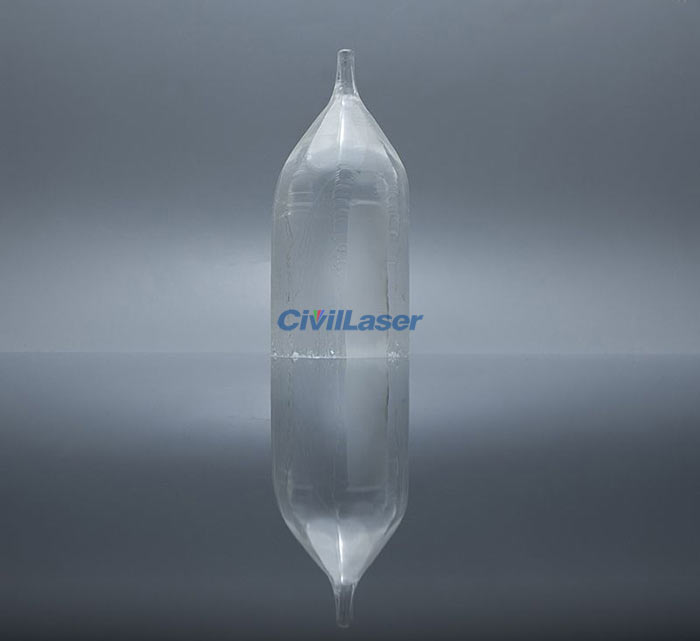

Yb:YAG laser crystals
