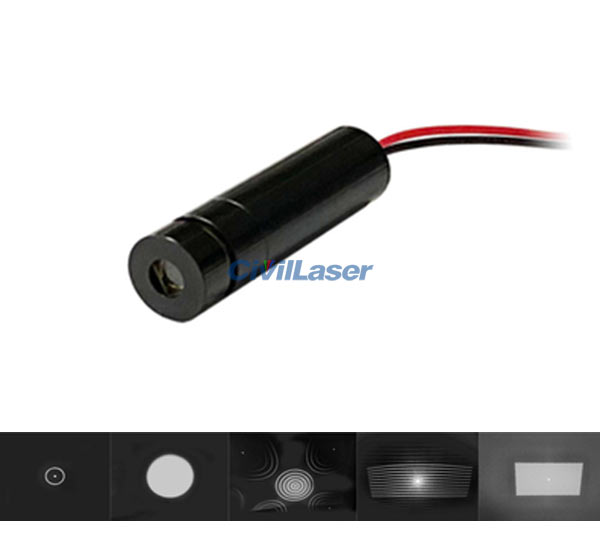

830nm 100mW Raster Pattern Módulo láser IR Laser Patterns Optional
Note:

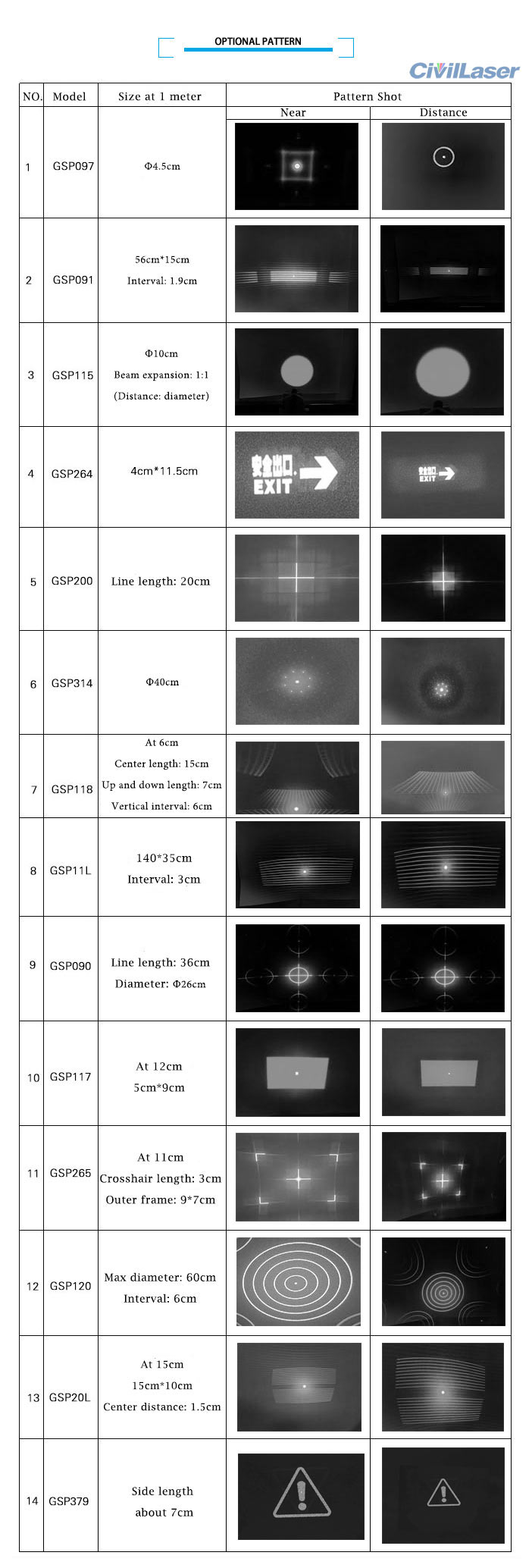

1. Various patterns are available, please indicate the pattern number when purchasing online: such as GSP097.
2. Grating graphics modules with other wavelengths and powers can be customized, please contact us.
[Specification]
nombre del producto: Laser module
Longitud de onda: 830±10nm
Outout Power: 100mW
Forma láser: Choose the laser shape. (e.g. GSP097)
Drive Voltage: DC 5V
Current: <150mA
Material: Aluminum
Surface Treatment: Oxidized black
Drive Mode: ACC constant current, continuous drive (customizable TTL)
Lens: PMMA adjustable
Wire: UL1007 26#150mm red and black wire
Operating Temperature: -10℃ ~ +50℃
Storage Temperature: -40℃ ~ +85℃
Working Life: > 10,000 hrs
