ESPECIFICACIONES:

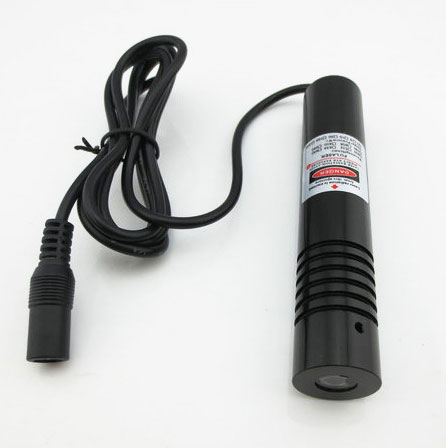

Name: 520nm Módulo láser verde Crosshair
Longitud de onda de salida: 520nm
Potencia de salida: 50mw/85mw (can be customized)
Forma láser: Cross
Tipo de láser: Visible laser, Verde color
Color exterior: Black

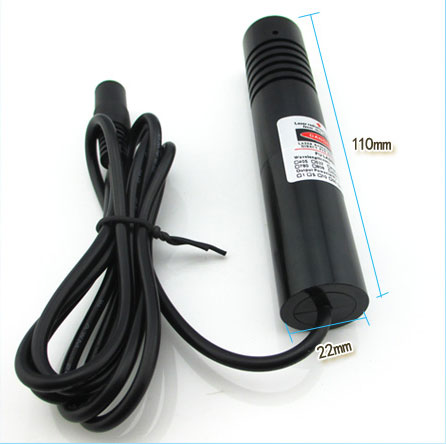

Tamaño: Φ22*110mm
Current: ≤280mA
Tensión de funcionamiento: DC 2.8-7.5(V)
Operating Temperature: -10--50℃
Storage Temperature: -40℃~80℃
Line width: 1.2m (can be customized)
Continuous work: 24h
Estabilidad de potencia: 95%
Garantía: 12 Months Factory warranty
In indoor environment, visible length up to 8 meters,in semi outdoor (non direct sunlight) environment, visible length up to 4 meters‚

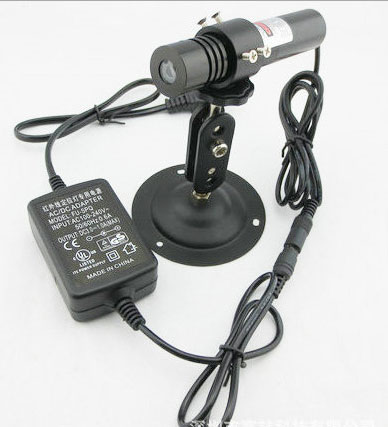

El paquete incluye:
1* Módulo láser verde;
1* Laser stand;
1* Power supply
This is the upgraded version of laser spot, the advantages of this laser module are:
1, The large size, beneficial to the heat dissipation, increase life expectancy;
2, The drive circuit controlled by intelligent IC, the stability is better;
3, Oxidation blackening shell, permanent anti-static;
4, Added the window film at the light outlet, can prevent the dust;
5, Use the latest high technical laser diode, can withstand temperatures up to 60 degrees;
6,Use thermal conductivity of silica gel and AD glue filled the inside, to ensure the full heat, vibration and falling;
7,Tail power line using high temperature line, good toughness and corrosion resistance.
