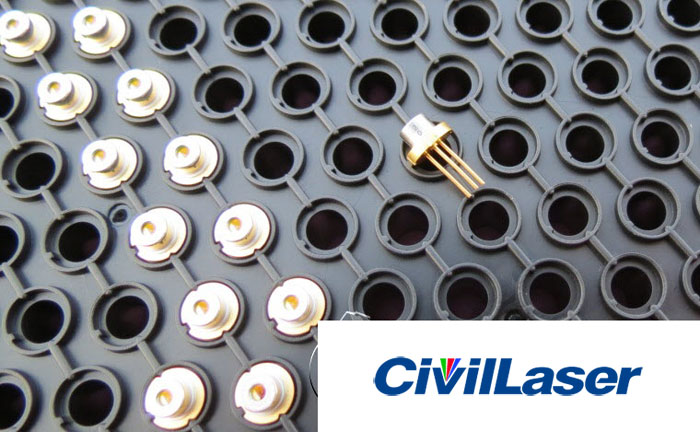

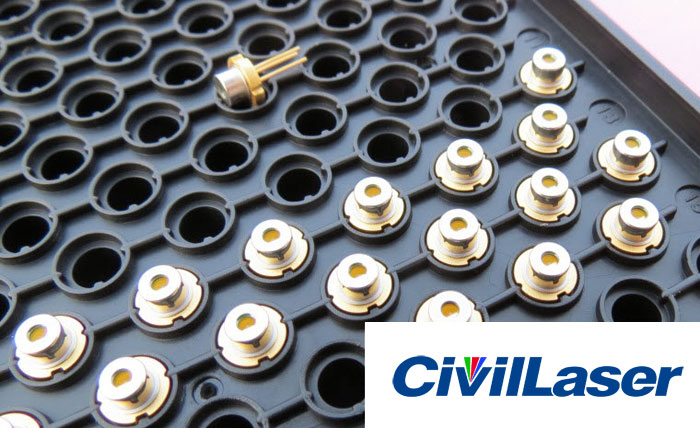

OSRAM PL-520-B2 520nm 90mw grass green laser diode T018

New Pirce | Nuevo precio (Click Here | Haga clic aquí )

Add to Cart | Añadir al carrito:


OSRAM  PL-520-B2 520nm 90mw grass green laser diode T018

Specifications‘
Place of production: Gremany (OSRAM)
Longitud de onda de salida: 520nm
Potencia de salida: CW 90mW
Tensión de funcionamiento: DC 6V
Package Type: TO-18 ( Φ5.6mm)
Operating Temperature: 0℃~60℃
Storage Temperature: -40℃~85℃
Welding time: < 10 seconds
Welding Temperature: < 260℃
Working life: >10,000 hours


Nota:
This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.
