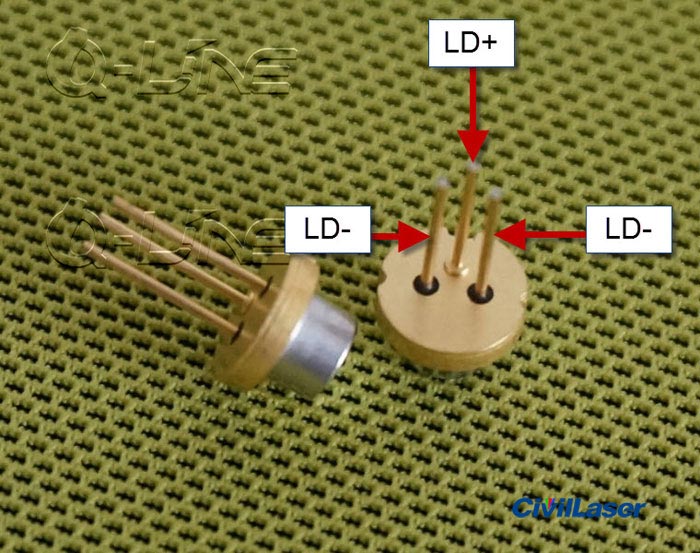

850nm 1000mw/1W Infrarrojo/IR laser diode T018(5.6mm)

850nm 1000mw/1W Infrarrojo/IR laser diode T018(5.6mm)

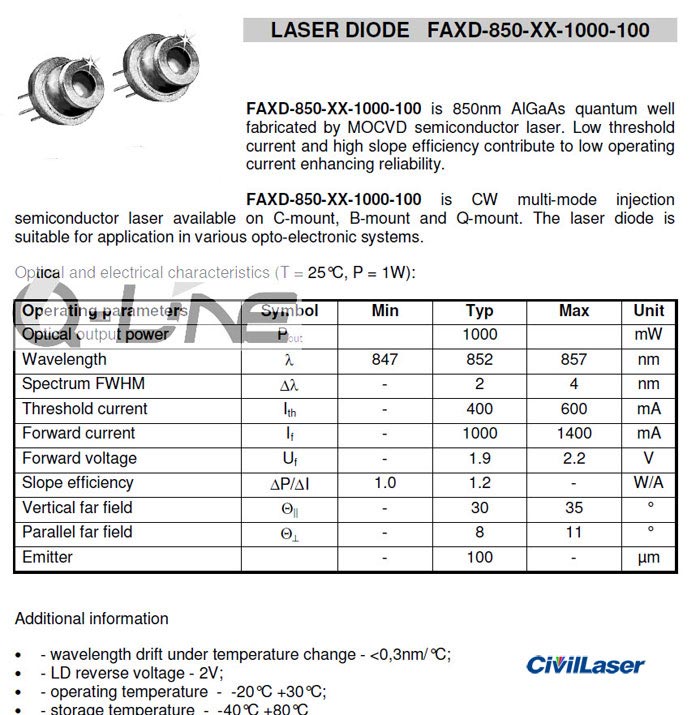

[Especificaciones]
Name: Diodo láser
Longitud de onda de salida: 850nm
Potencia de salida: 1000mW CW
Package Type: TO-18 ( Φ5.6mm)
Place of production: Japan
Working life: >10,000 hours


Nota:
This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.
