ESPECIFICACIONES:
Name: 635nm 20mw 30mW Módulo láser rojo Dot/Line/Crosshair
Longitud de onda de salida: 635nm
Potencia de salida: 20mw or 30mW

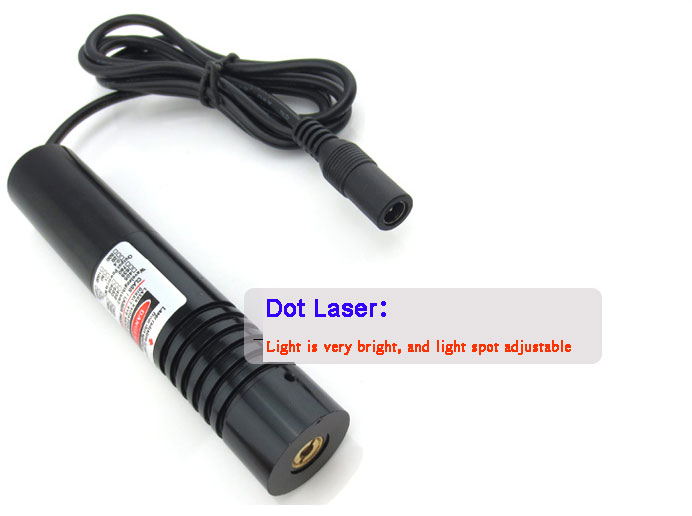

Forma láser: Dot
Tipo de láser: Visible laser, Rojo color
Color exterior: Black

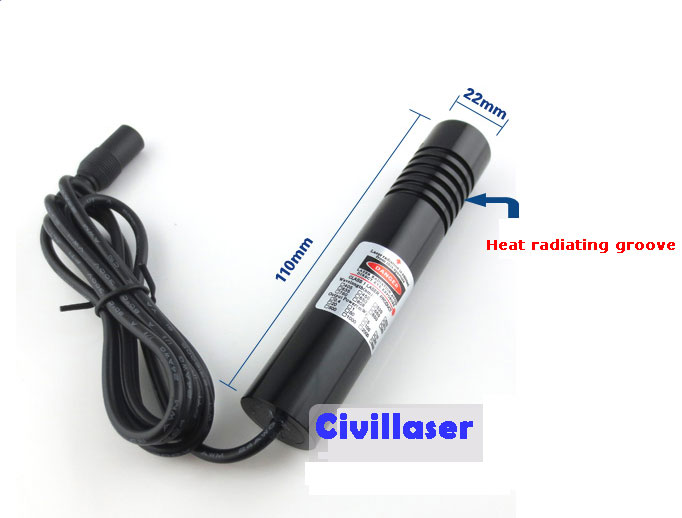

Tamaño: Φ22*110mm
Current: <150mA
Tensión de funcionamiento: DC 2.8V-5V (Power need to be purchased separately)
Operating Temperature: -10℃~40℃
Storage Temperature: -40℃~80℃

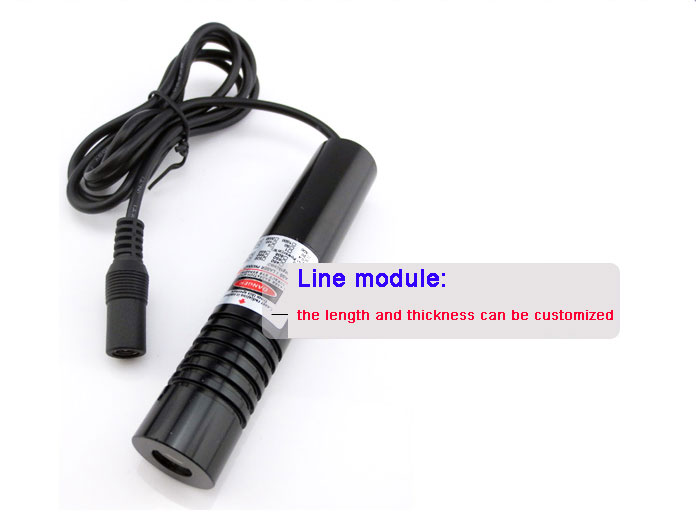

Line width: can be customized
Garantía: 12 Months Factory warranty

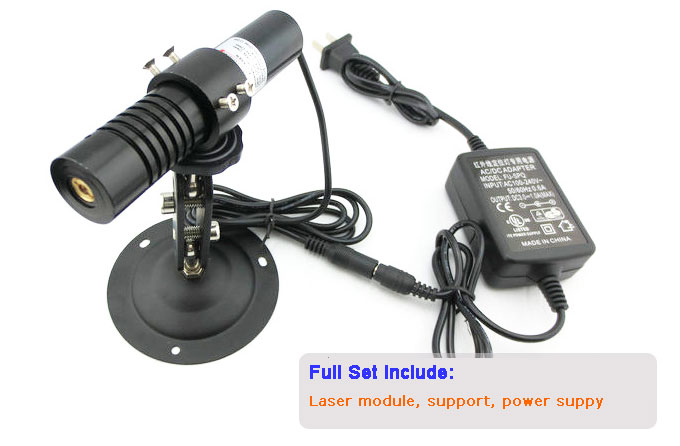

El paquete incluye:
1* Módulo láser rojo
1* Laser module holder
1* Power supply
This is the upgraded version of laser spot, the advantages of this laser module are:
1, The large size, beneficial to the heat dissipation, increase life expectancy;
2, The drive circuit controlled by intelligent IC, the stability is better;
3, Oxidative blackening shell, permanent anti-static;
4, Added the window film at the light outlet, can prevent the dust;
5, Use the latest high technical laser diode, can withstand temperatures up to 60 degrees;
6,Use thermal conductivity of silica gel and AD glue filled the inside, to ensure the full heat, vibration and falling;
7,Tail power line using high temperature line, good toughness and corrosion resistance.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
