1020~1650nm Singlemode InGaAs PIN High-speed Photo-detector Module

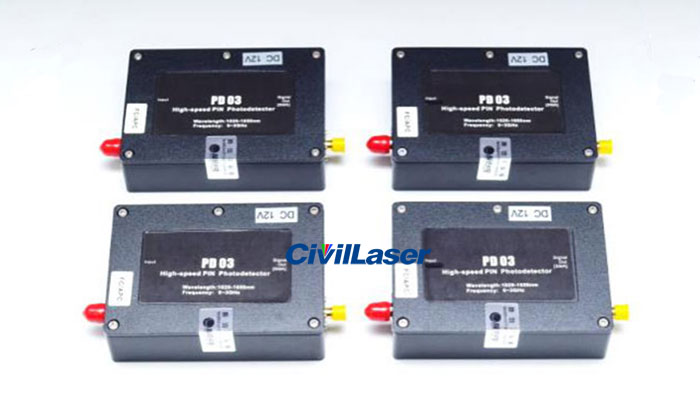

High-speed InGaAs PIN photodetector module PD03, the photoelectric response bandwidth is ≥3GHz, the pulse rise time is 125ps, and the working wavelength covers the wavelength of 1020 ~ 1650nm. RF RF signal output adopts SMA interface, which is convenient to connect with RF test equipment. Suitable for optical transmission systems, ultra-fast laser pulse detection, etc.
[Features]
3GHz bandwidth.
125 ps rising edge.
DC coupled output, high-speed SMA interface.
[Applications]
Optical fiber communication
Chirped Pulse Laser Measurement
Optical fiber sensing
[Specification]
|
Parameters
|
Unit
|
Typical Value
|
Remarks
|
|
Model
|
--
|
PD03
|
|
|
Working Wavelength
|
nm
|
1020~1650
|
|
|
Optical Power Input Range
|
dBm
|
-10 ~ 18
|
|
|
Rise Time
|
ps
|
125
|
|
|

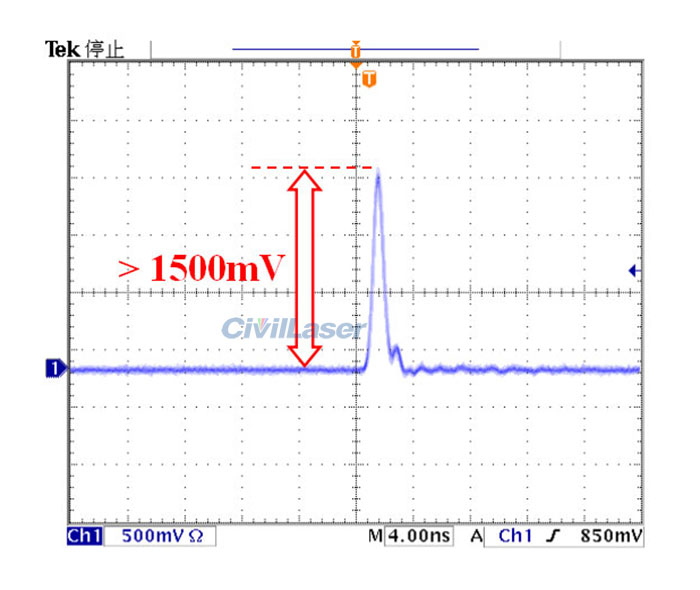

Max. Electrical Pulse Output
|
mV
|
1500
|
|
|
Photoelectric Response
|
A/W
|
1.0
|
|
|
mV/mW
|
30
|
|
|
Return Loss
|
dB
|
-37
|
|
|
Output Matching Impedance
|
Ω
|
50
|
|
|
Frequency Response Range
|
GHz
|
0~3.0
|
@3dB
|
|
Fiber and Interface
|
--
|
SMF-28e single-mode fiber,
FC / APC
|
|
|
RF output
|
--
|
SMA
|
|
|
Electrical and environmental parameters
|
Photo-detector Module
|
|
Power supply
|
12V DC, <5W
|
|
Size
|
100(W)×70(D)×25(H)mm
|
|
Operating temperature range
|
-5~+55°C
|
|
Operating humidity range
|
0~70%
|
