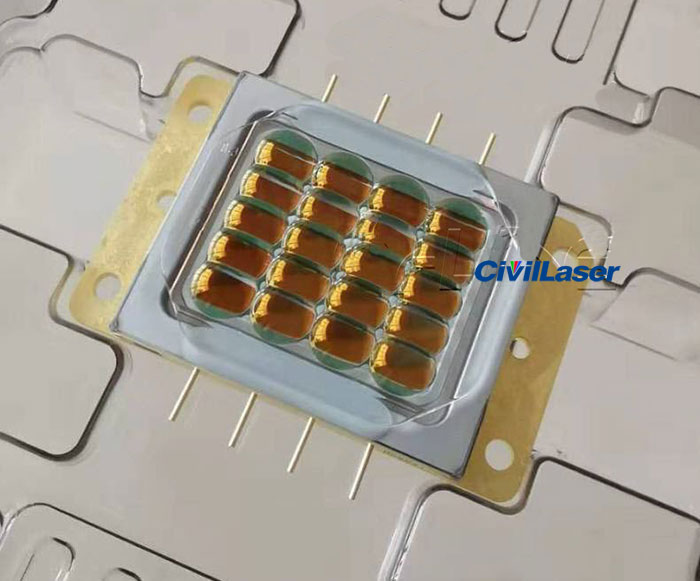

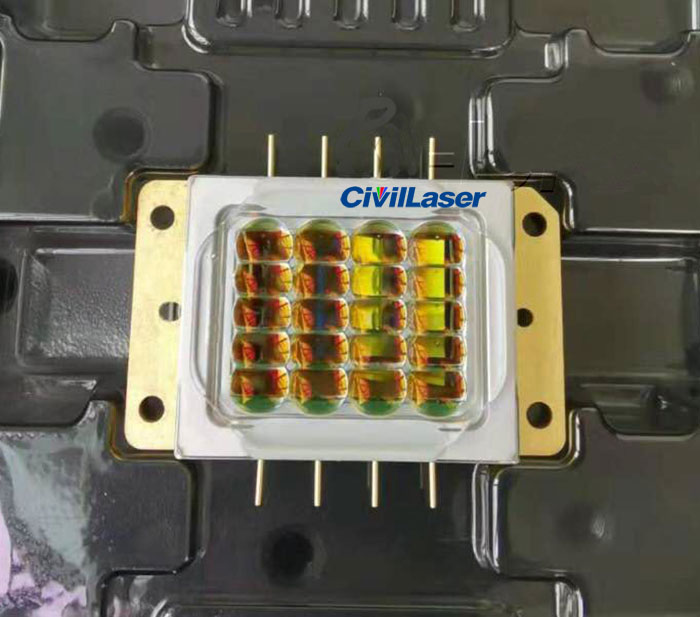

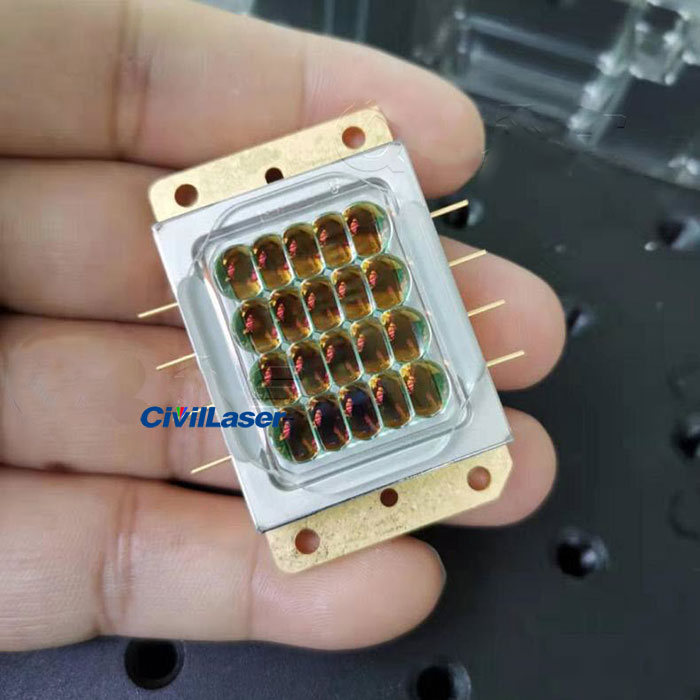

Nichia Powerful Diodo láser NUBM31 455nm 4.75W*20 95W Diodo láser azul Bank

Nichia Powerful Diodo láser NUBM31 455nm 4.75W*20 95W Diodo láser azul Bank

This diode bank is mainly used for the display light source of laser color projectors. It is currently the most powerful in the Azul laser diode on the market.

Nota:
Old model: NUBM31 95W (Out of stock)
New model: NUBM36 105W

This type of diode is mainly used for the display light source of laser color projectors, NUBM31 and NUBM36, with the same shape and size, but the power is different.
NUBM36 is an upgraded version, and the old NUBM31 will be discontinued in the future.

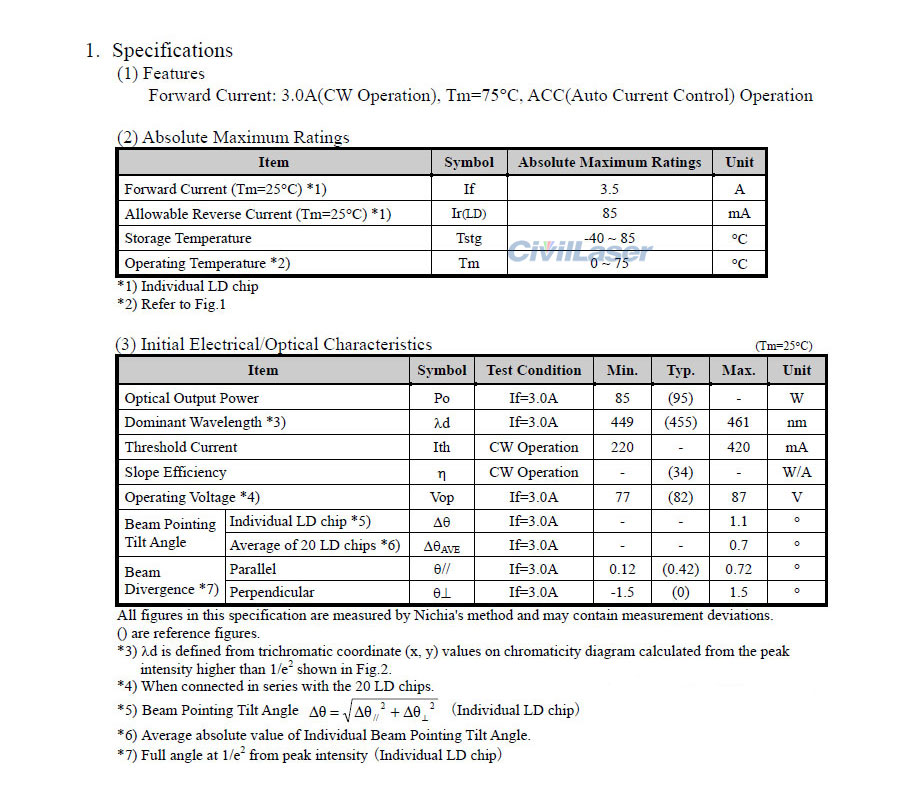

[Specification]
nombre del producto: Diodo láser Bank
Model: NUBM31
Longitud de onda: 455nm
Potencia de salida: CW=95W (4.75W*20) / CW=105W (Escoger)
Pulse Power: Single diode >9W
Working Current: <3.5A
Working Voltage: 82V
Working Temperature: 0 ~ +75 °C
Storage Temperature: -40 ~ +85 °C

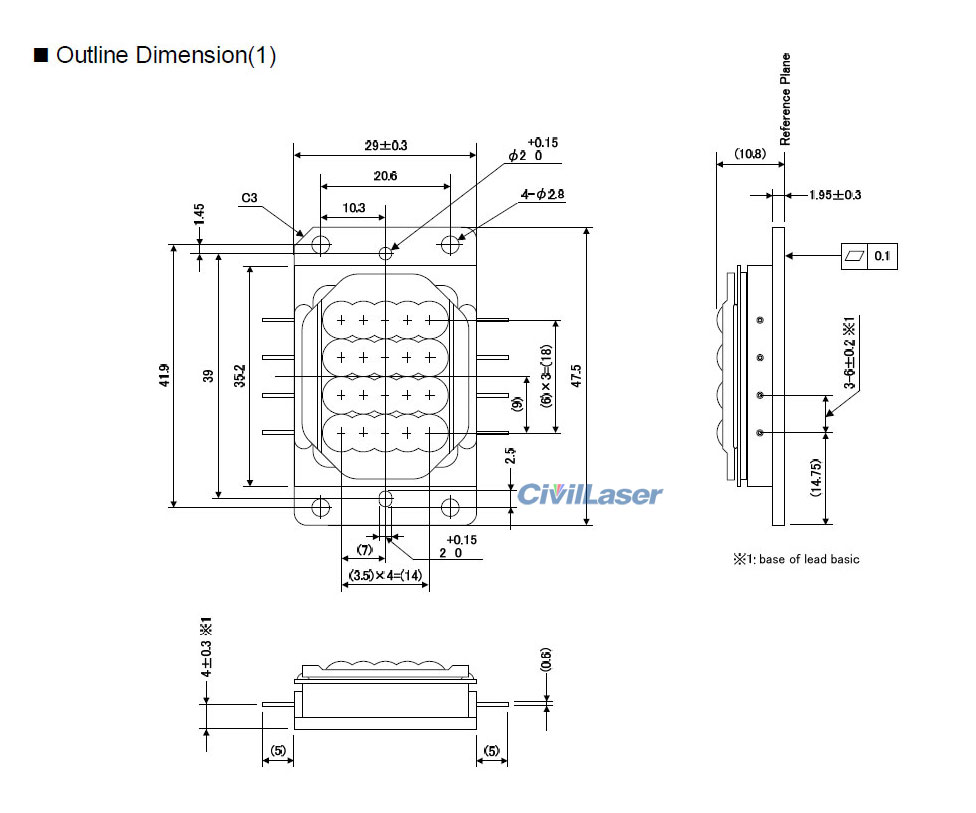

Package: T05 (Φ9mm)
Working Life: > 20,000 hours
