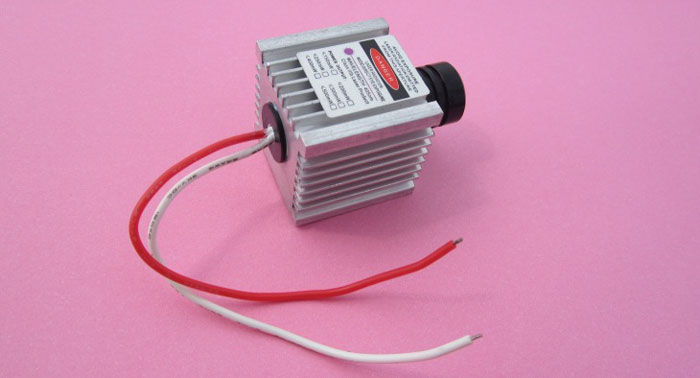

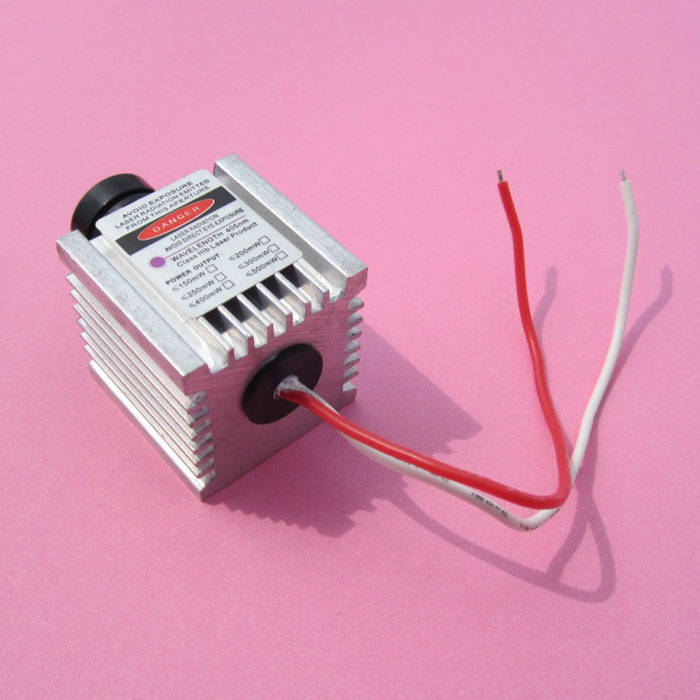

200mW 405nm Azul Violet Laser module Heat radiation design/Focus adjustable


Features:
1. Good heat radiation design, the best combination of copper + aluminum, smaller, better heat dissipation, to meet the long working conditions;
2. With built-in 3-5V constant current drive circuit,3-5V input can achieve constant power source and integrated circuit design;
3. With external focusing design, the rotary head can achieve different seat distances spot size, meet the requirements of different working distance;


ESPECIFICACIONES:
Dimension: 29mmx29mmx29mm
Longitud de onda de salida: 405 nm
Potencia de salida: 200mW
Cooling method: aluminum radiator
Laser Spot size: focusable
Surface treatment: aluminum color
Shell material: Aluminum
Circuit control: ACC line
Circuit control: constant current
Reverse connection protection: Yes
Working voltage: DC=3-5V
Working current: I<260mA
Warm-up Time: NO
Working temperature: - 10 ℃ ~ 40 ℃
Storage temperature: -10 ℃ ~ 40 ℃
Structure characteristics: laser tube + lens + radiating shell
Wiring: red is positive, white is negative

El paquete incluye:
1* 405nm laser module
