High power 1000mW~5000mW C-Band ASE light source Desktop type

The fiber ASE broadband light source is based on the erbium doped fiber and high performance pumped laser, which produces the amplified spontaneous emission light in the 1550nm band. Precision constant current drive and temperature control circuit to control the pump laser, to ensure the stability of the laser output power, and the use of a unique light path structure design and gain flat filter structure. The output power is high and the spectrum is flat, which is suitable for the application of fiber grating sensing and scientific research.


Application:
optical fiber laser
optical fiber communication
DWDM system
optical fiber sensor

[Especificaciones]

Parameter index

Unit

Minimum value

Typical value

Maximum value

Remarks

Wavelength range

nm

1528

1550

1563

Covering C-band

Spectral width

nm



> 35





Flatness

dB



3





Output power

mW





1000~5000

choose
(Output power is fixed.)

dBm





30~36

choose

Output isolation

dB



45





Operating temperature range

-20



+45



Working humidity range

%





75



Storage temperature range

-40



+85



Power supply type

-

AC 100V~240V



Pigtail connector type

-

FC/APC



Output pigtail type

-

Single Mode fiber, SMF-28e



Size

mm

LCD Desktop type
260(W)×280(D)×120(H)


Control method



Button

Communication Interface



RS232, DB9 Female Default not include, Only for output power adjustable model.
Add software control functions, please contact us.

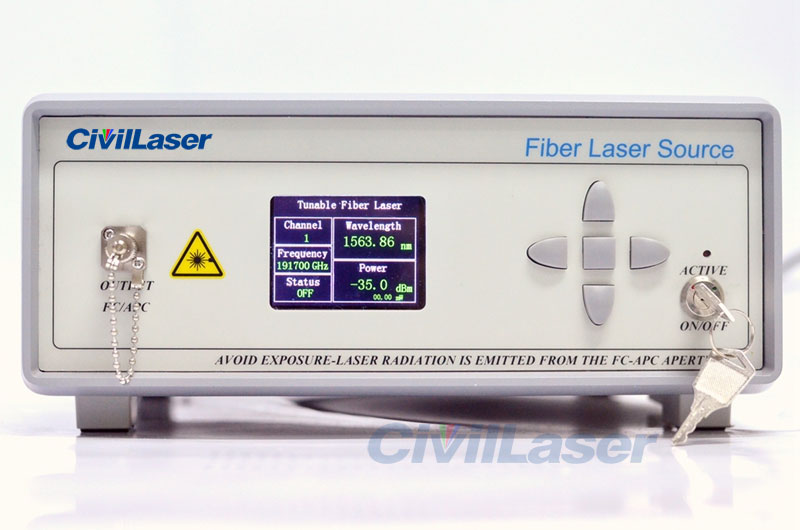

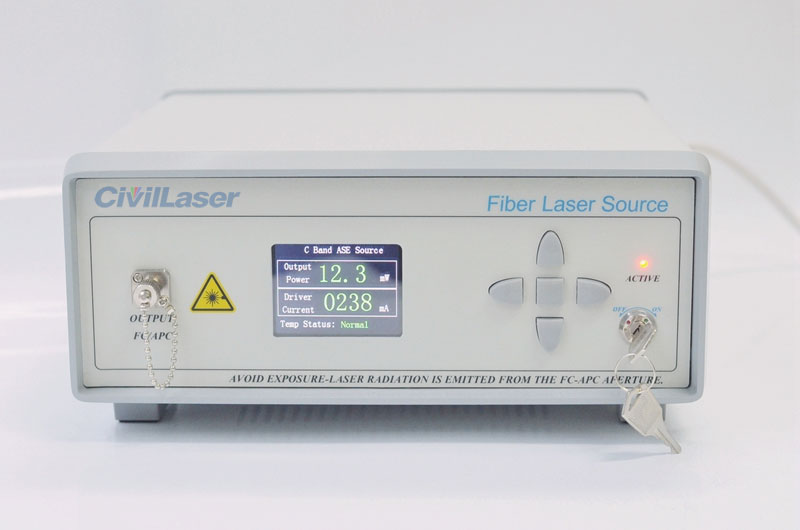

ASE light

ASE light

ASE light

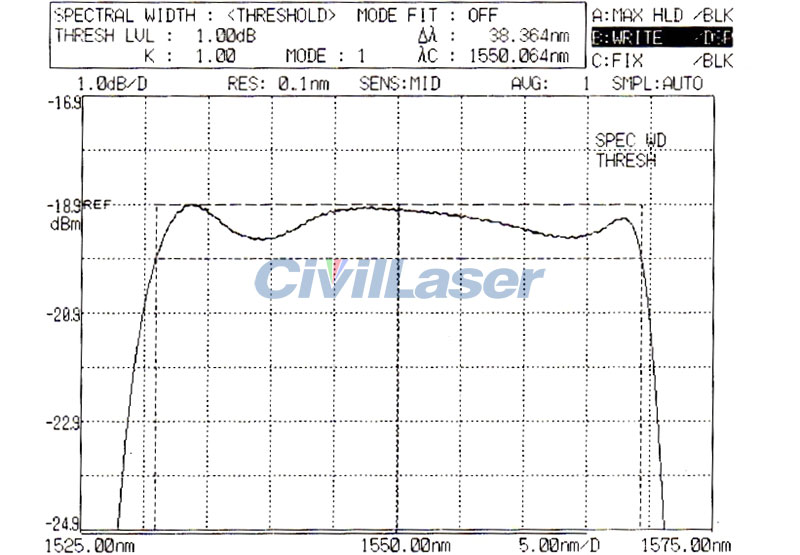

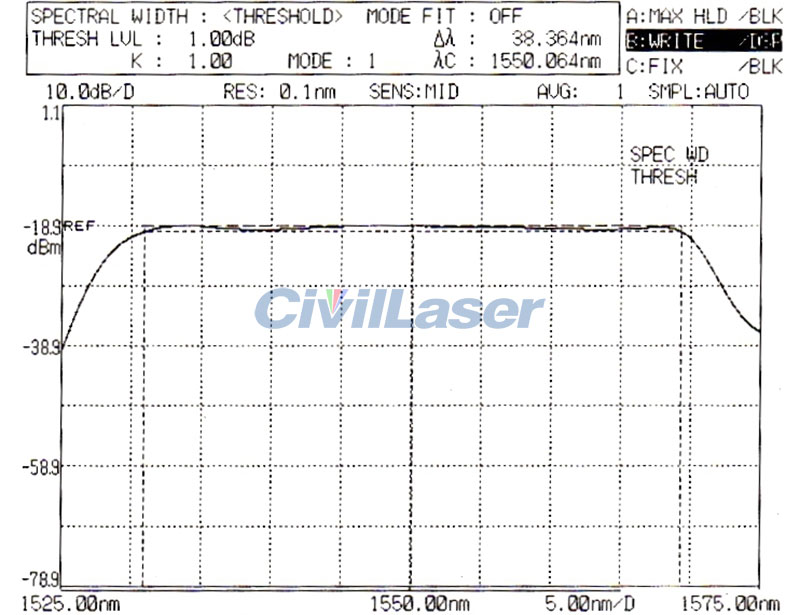

The following spectrum, flatness and spectral shape remain unchanged at different power levels:
ASE source
