532NM TTL Módulo láser verde / Thick laser beam / Bright laser light beam expander / Parallel light

532NM 100mW~200mW TTL Módulo láser verde / Thick laser beam / Bright laser light beam expander / Parallel light



As we all know,Ordinary laser beams are fine laser beam, Launch angle is fan-shaped,Long shots ineffective,The expanded beam is a parallel beam laser effects,How much is the aperture,How much is the distance,Idemitsu is simply more crude,Long shots are also more crude. Coarse if the power of the laser beam is low,There is no practical effect.



Longitud de onda de salida: 532 nm

Potencia de salida:  100mW/200mw (Escoger) -- 200mw is out of stock now.

Exit Pupil Diameter: 12-16mm (Thick laser beam)

Refrigeration mode: Fan Cooling

Continuous Work: Yes

Frequency mondulation: TTL 10-20K HZ

Color exterior: Black

Material: Aluminum Alloy

Electric-control: Constant-current

Anti Access Protection: Yes

Tensión de funcionamiento: AC 220V (Power supply and laser module is integrated,Directly into a AC 220V power outlet to emit green laser beam.)

Operating Current: I<8 00mA

Warm-up time: No

Operating Current: -10℃~+40℃

Storage Temperature: -10℃~+40℃

Structure: Laser tube + Lens + Radiating shell

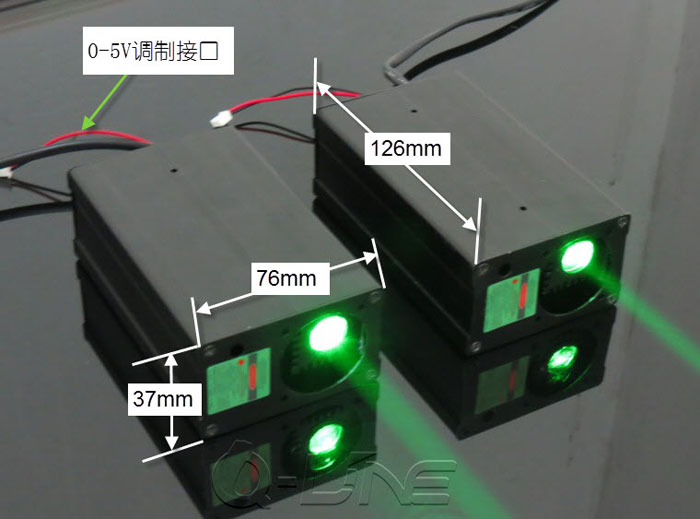

Módulo láser Tamaño: 126mm*76mm*37mm
