1567nm~1603nm L-Band ASE broadband Fuente de luz 10~100mW 3dB Flattening Module Type

The L-band gain flat fiber ASE broadband light source module adds gain flattening technology to the common broadband light source, and optimizes the light source structure. The output spectral flatness is ≤3dB and has high output power. Suitable for applications such as fiber optic sensing.

[Features]
High output power
Spectral flatness ≤3dB
Stable spectrum

[Applications]
Fiber Optic Sensing
Medical Imaging
Optical fiber device testing

[Especificaciones]

Parameter

Unit

Typical value

Remarks

Working wavelength

nm

1567~1603

L band

Output power

mW

10~100

Choose
(Output power is fixed.)

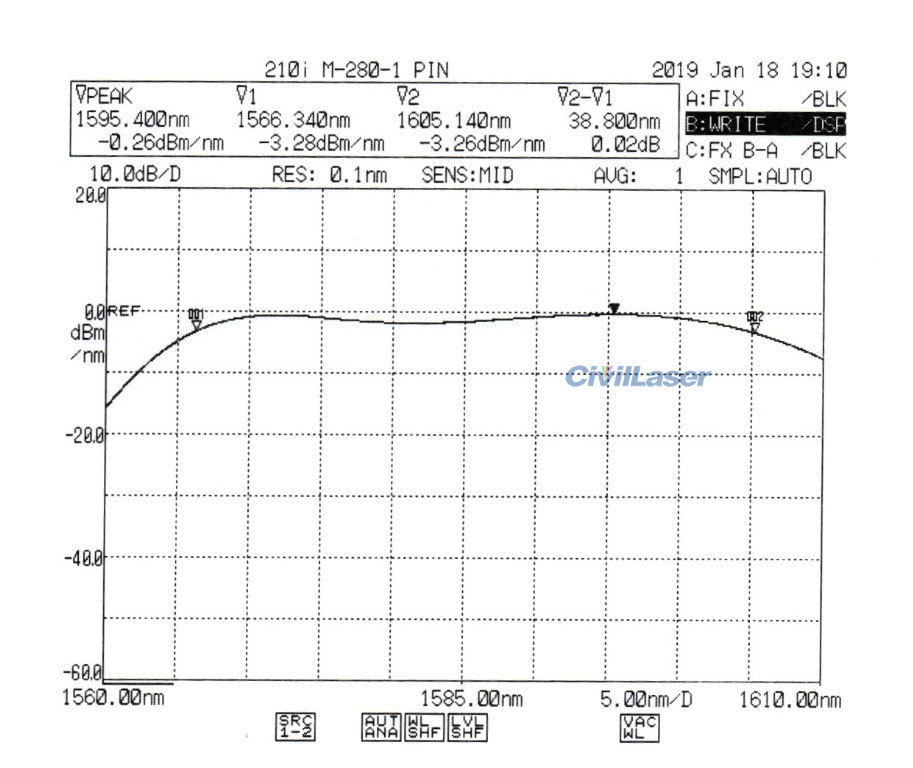

Spectral Flatness

dB

2 (Type), 3(Max)



Output end isolation

dB

>35



Short term stability(15Minutes)

dB

≤ 0.02



Long-term stability(8Hours)

dB

≤ 0.05



Pigtail fiber type

 -

 SMF-28e single mode fiber



Fiber output type

 -

FC/APC

Personalizable

working temperature

°C

-20 ~ +65



Storage temperature

°C

-40 ~ +85



Power supply mode

-

DC 5V



Module type size

mm

125(W)×150(D)×55(H)



Communication interface

-

DB9 Female(RS232)

Default not include, Only for output power adjustable model.

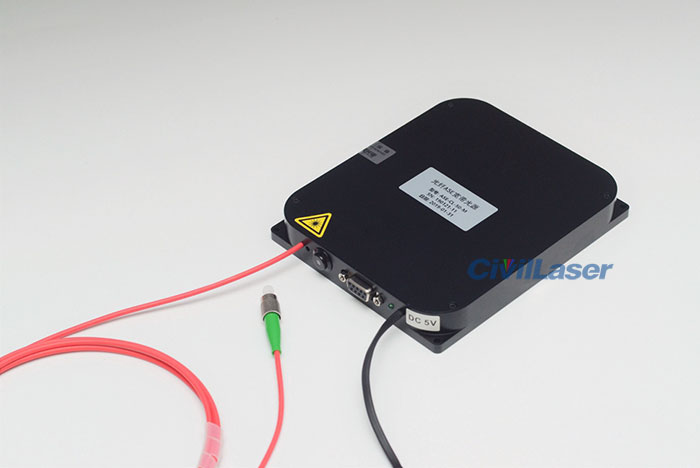

ASE broadband light source

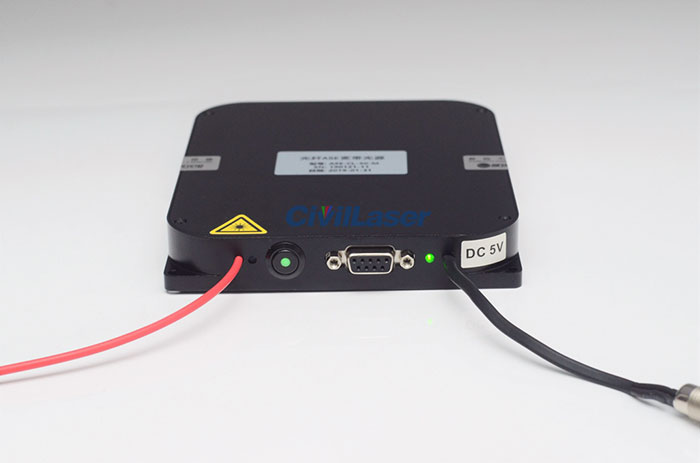

ASE broadband light source

ASE broadband light source
