660nm 200mw Waterproof Rojo laser diode module Dot/Line/Crosshair DC 12v(6V~30V)

New Pirce | Nuevo precio (Click Here | Haga clic aquí )

Por favor, elija:







Add to Cart | Añadir al carrito:


660nm 200mw Waterproof Rojo laser diode module Dot/Line/Crosshair  DC 12v(6V~30V)

Product Features:
1. Waterproof design, no longer because of wet weather the laser optical system damage caused irreversible damage, so your work is not affected by the environment, outdoor rain and snow as usual;
2. Design distinctive shape, considering the product is more suitable for an arbitrary square plane precisely fixed, so designed as a rectangular cross-section, of course, but also retains the characteristics of concentric circles, so let alone module or assembly and to other device becomes simple and accurate.
3. Mitsubishi imported red laser diode, the light source in the form of a word line.
4. Using the 12V input supply voltage can be matched with the motor vehicle, of course, can be customized according to customer requirements various voltage input version.


These products designed for automotive power supply 12V wide voltage design, universal power supply all kinds of motor vehicles, directly connected to the vehicle power supply or cigarette lighter. Can provide customers with photovoltaic solutions designed to meet customer demand laser modules.

ESPECIFICACIONES:
Name:  660nm  Módulo láser rojo Focusable
Longitud de onda de salida: 660nm ± 10nm
Potencia de salida: 190-210mW
Forma láser: Dot/Line/Crosshair (Choice)
Tipo de láser: Visible laser, Rojo color
Color exterior: Anode gray
Material: Aluminum Alloy

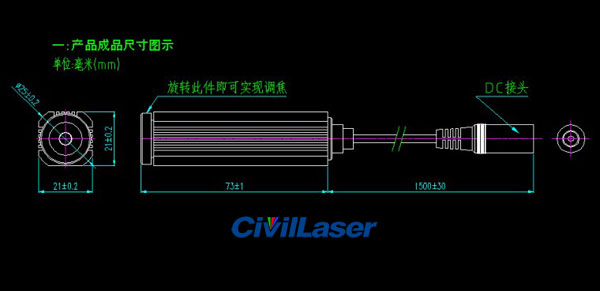

Dimensions: The cross-sectional dimensions of the rectangle 21mm
Electric-control: ACC line rod
Anti Access Protection: Yes
Tensión de funcionamiento:  DC 6V-30V
Operating Current: <320mA
Warm-up Time: <1 second
Operating Temperature: -10℃~40℃
Storage Temperature: -10℃~40℃
Structural features: laser tube + lens + cooling housing
Nota: The red wire is positive, black is negative, waterproof, suitable for outdoor environment is poor environments
Garantía: 12 Months Factory warranty


El paquete incluye:
1* Módulo láser rojo

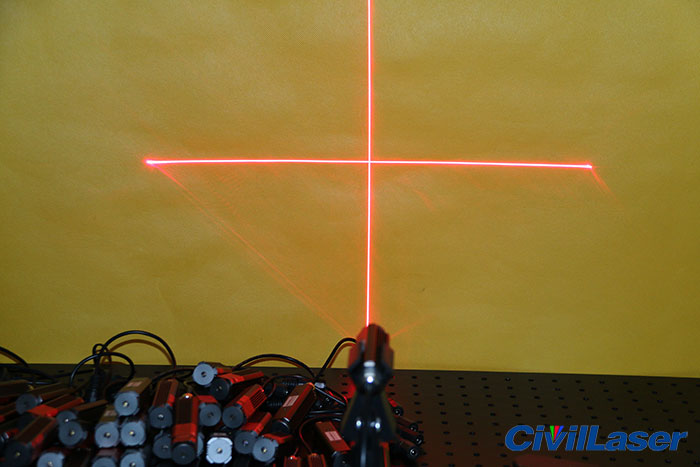

660nm red crosshair laser module
