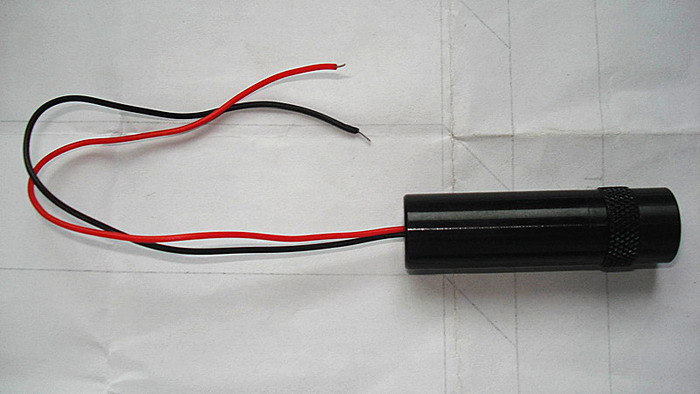

TTL  sinusoidal wave modulation 780nm 5mw IR laser Module Focus Adjustable 16*55mm

ESPECIFICACIONES:
Name: TTL  sinusoidal wave modulation 780nm 5mw IR laser Module
Longitud de onda de salida: 780nm
Potencia de salida: 5mW (Customize other output power)
Beam Divergence: 0.1mrad ~ 0.6mrad adjustable
Optical Systems: Optical Coated Glass
Spot Descripción: 1m department width <=> spot diameter Φ0.5mm (Adjustable)
Modulación: TTL modulation
Modulation frequency: 10Hz-100KHz
Tipo de láser: Invisible laser, Near IR laser
Color exterior: Black
Tensión de funcionamiento: DC 3V ~ 5V
Clase de láser: IIIB
Operating Temperature: -10℃~70℃
Storage Temperature: -40℃~80℃
Tamaño: Φ16mm x 55 mm
Continuous working time: > 12 hours(Good heat dissipation)
Garantía: 12 Months Factory warranty


TTL modulation Descripción:
1 The red and yellow lines shorted, the module will be lit, in a continuous mode of operation;
2 To modulate the signal line negative black wire, positive connected to the yellow line, red line vacant, modulation module in working condition.
3 Signal input modulation frequency must be within the range 500KHZ;


El paquete incluye:
1* TTL 780nm laser module
