1310nm 50~100mW SM Láser de fibra acopladaStabilizing Laser System

New Pirce | Nuevo precio (Click Here | Haga clic aquí )

Por favor, elija:







Add to Cart | Añadir al carrito:


1310nm 50~100mW SM Láser de fibra acopladaStabilizing Laser System

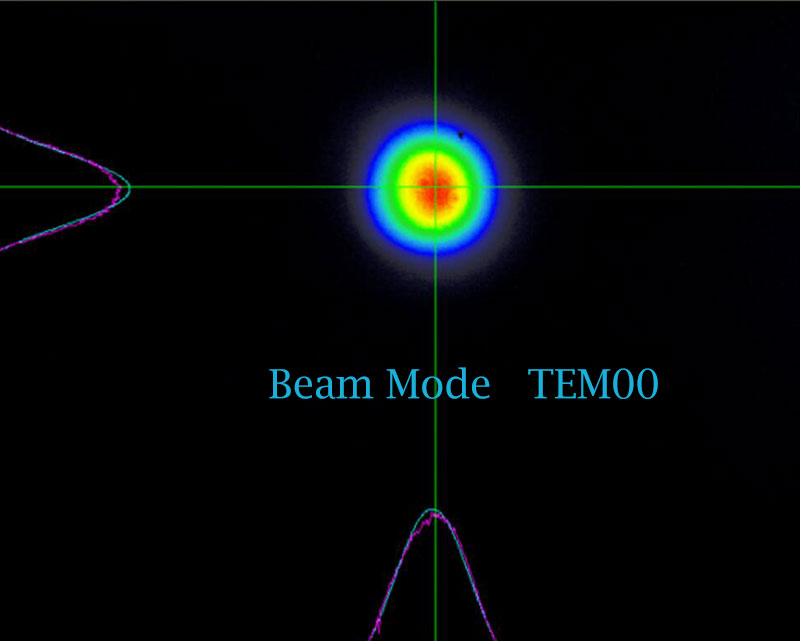

The laser is a single mode fiber coupled to a 1310nm semiconductor laser. The coupled fiber output power is stable and the spot mode is TEM00 mode. The beam quality is very good and can meet the demand for higher beam quality requirements.

[Especificaciones]
Longitud de onda: 1310nm±20nm
Potencia de salida: 50mW/100mW (Escoger) (@ Fiber output side, and 0~max power adjustable)
Spectral Linewidth: 10nm
Fiber Type: SM / PM (Escoger)
Fiber Interface: FC/PC, FC/APC, SMA905 (Escoger)
Polarization Ratio: >70:1 (Only for PM fiber)
Output stability (rms): <3% over 2 hours
Operating Temperature: 0°C-40°C
Storage Temperature:  -40°C-85°C
Modulación: 0~10KHz TTL
Warm-up Time (minutes): <5
Expected Lifetime (hours): >5000
Warranty Time: 1 Year

Notes:
This is a custom product.If you need other output powe or have special requirements, please contact us.
Tiempo de espera: 2~4 weeks! Custom product available!


1310nm SM Fiber coupeld laser

1310nm SM Fiber coupeld laser

1310nm SM Fiber coupeld laser
