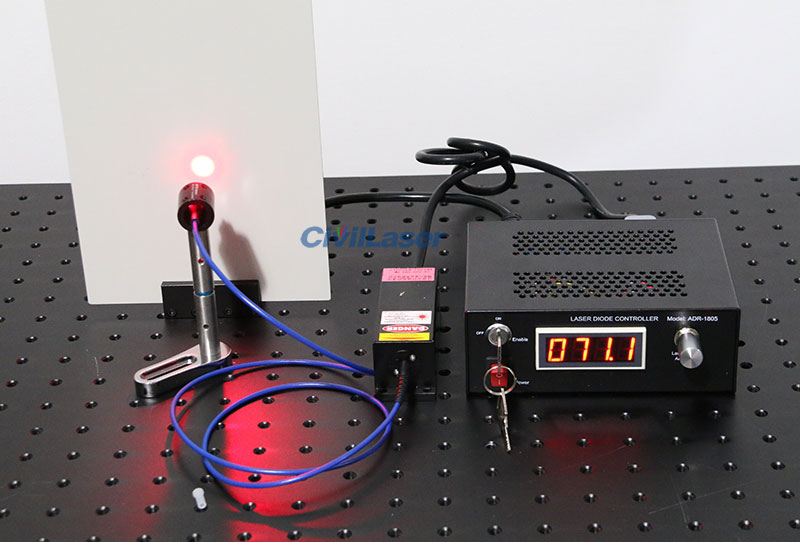

635nm 100mW Single Mode Láser de fibra acopladaTEM00 Mode Laser

635nm 100mW Single Mode Láser de fibra acopladaTEM00 Mode Laser

This product is for single mode fiber coupling of semiconductor laser,the stability of the output power of the fiber is good and the spot mode is TEM00 mode.The beam quality is very good, which can meet the requirement of high beam quality.
Our company produces single wavelength, polarization maintaining and multimode fiber coupled lasers at various wavelengths, as well as fiber optic coupled lasers with fiber coupled lasers.Please contact us.

Notes:
This is a custom product.If you need other output powe or have special requirements, please contact us.
Tiempo de espera: 2~4 weeks! Custom product available!

[Features]
1.High power stability(<3%)
2.Singal mode fiber coupled,fiber output.

[Especificaciones]
Longitud de onda: 635nm±5nm
Potencia de salida: 1~100mW
Spectral Linewidth: <2nm
Fiber Type: SM/PM (choose)
Fiber Interface: FC/PC, FC/APC, SMA905 (choose)
Longitud de la fibra: 1m (If you need other length, please contact us.)
Polarization Ratio: >70:1 (Only for PM fiber)
Laser Head size: 35mm*35mm*102mm
Operating Temperature: 0°C-40°C
Storage Temperature: -40°C-85°C
Modulación: 0~10KHz TTL

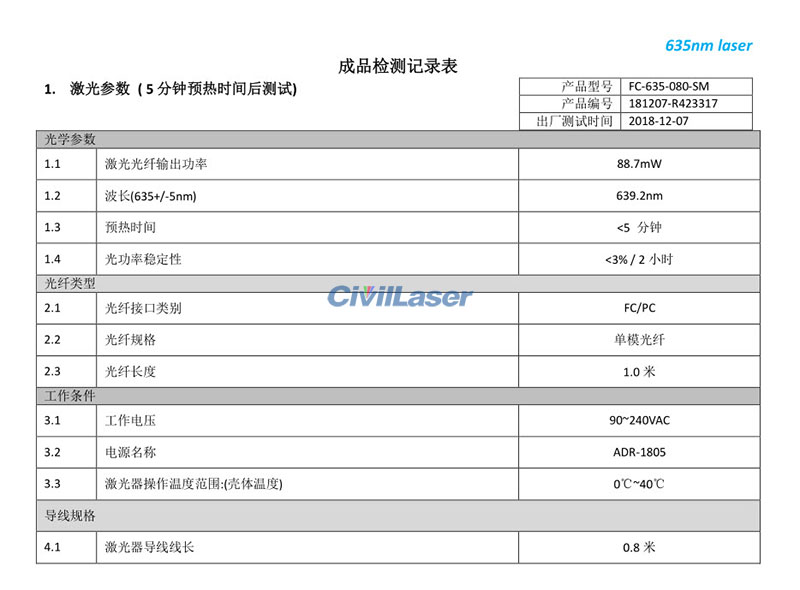

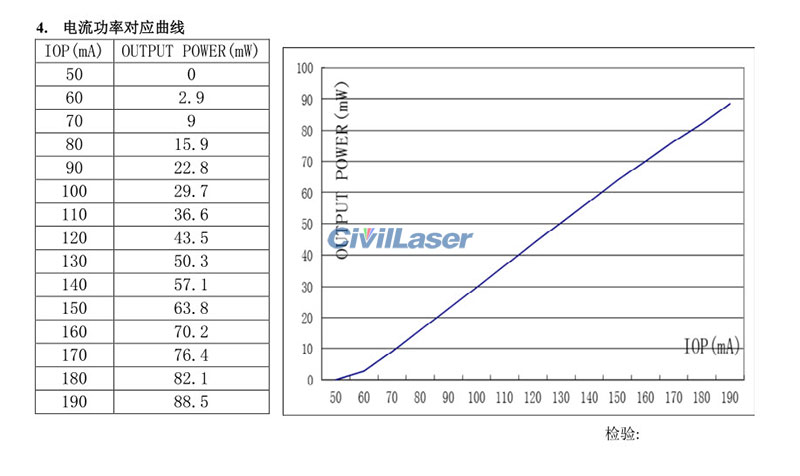

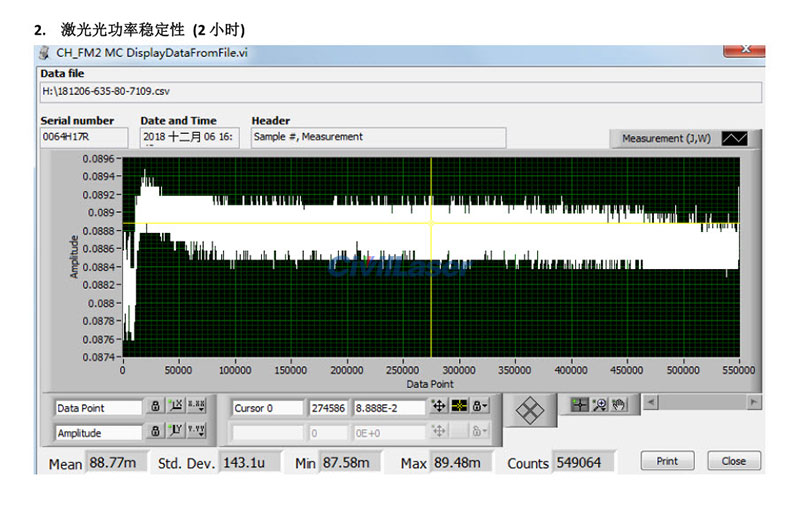

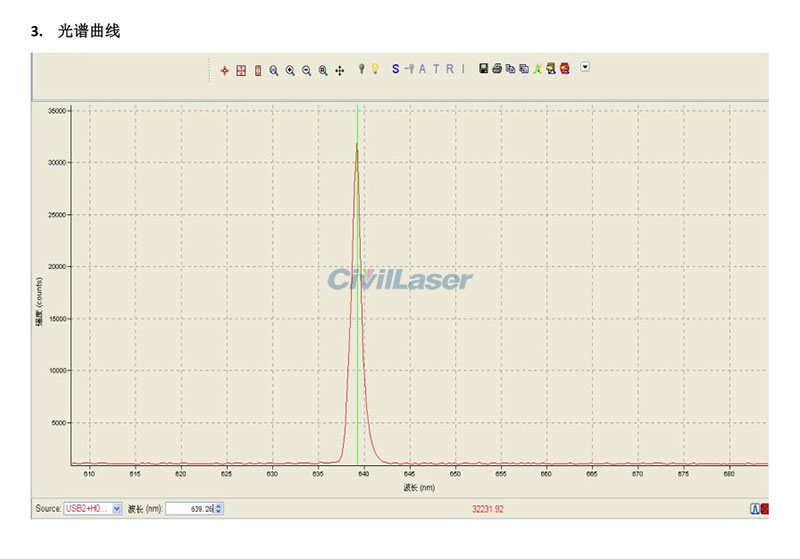

Test report reference:
