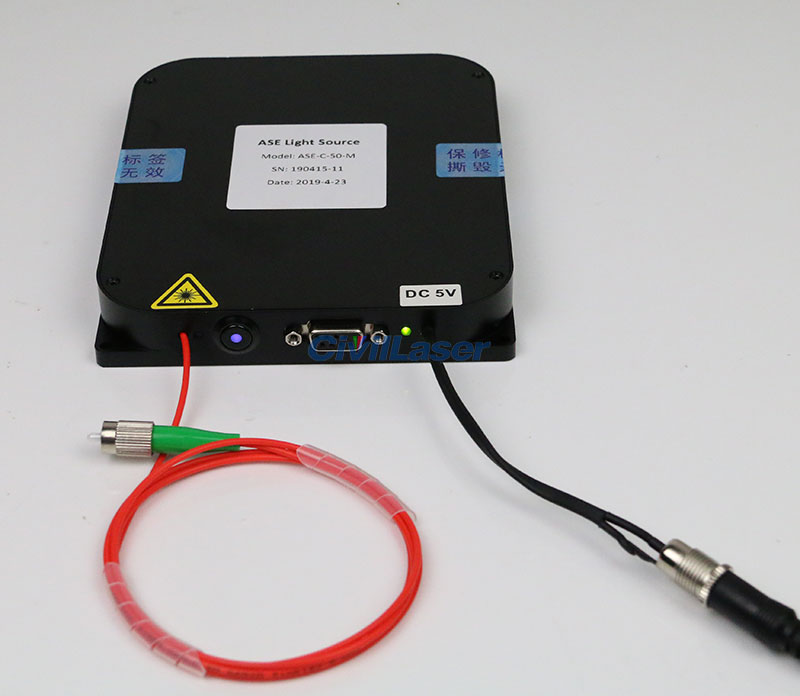

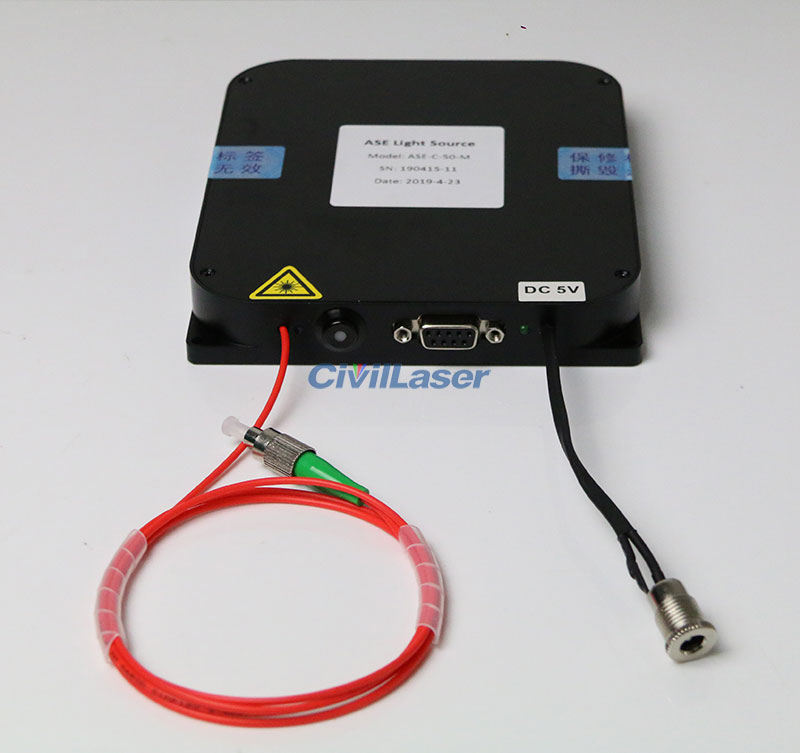

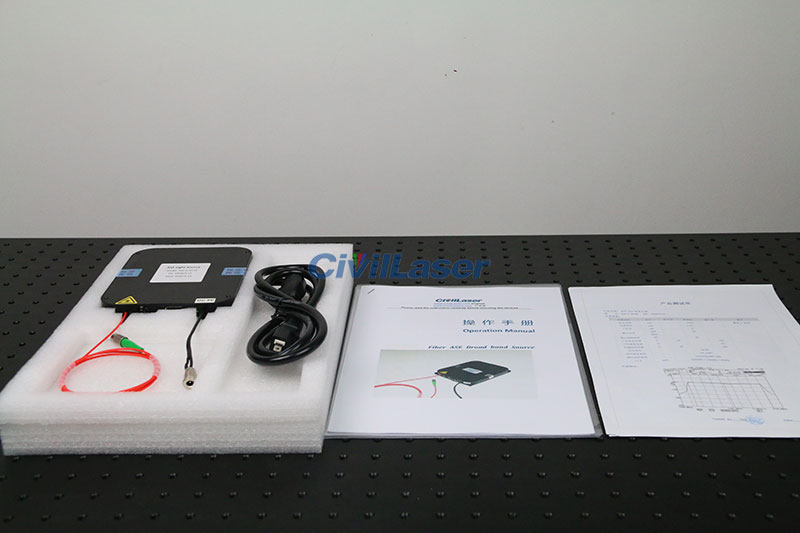

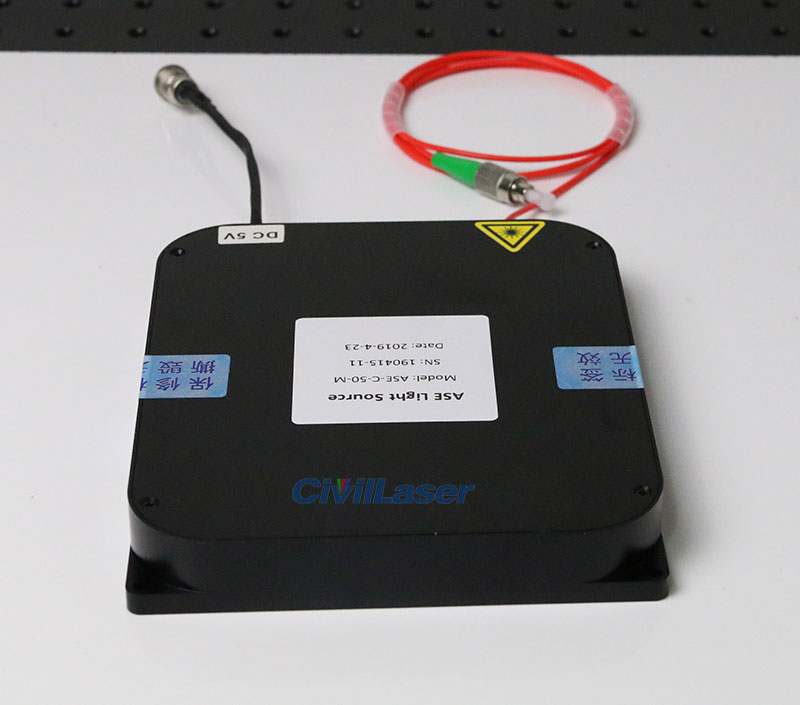

10mW~100mW  C-band ASE broadband light source 2dB Gain flattening module type


Gain flattened fiber ASE broadband light source is based on ordinary broadband light source and added the gain flattening technologies, nd optimize the structure of the light source, the output spectral flatness of <2dB, output power and high. Suitable for optical fiber sensing applications.



[Especificaciones]

Parameter Unit Typical value Remarks
Working wavelength nm 1528～1563 C-Band
Output Power mW 10mW~100mW Choose.   (Output power is fixed.)
Output isolation dBm >35
Spectral flatness dB  1.5 (Type), 2(Max)
Short-term stability (15 minutes) dB ≤ ±0.02
Long-term stability (8 hours) dB ≤ ±0.05
Fiber type   Single Mode Fiber SMF-28e
Fiber Optic Output Type   FC/APC (Default) Accept custom
Operating temperature °C -20°C ～ 65°C
Storage temperature °C -40°C ～ 85°C
Size   Module A: 90x70x15
Module B: 150x125x20(Default)
Module C: 120x160x55


We send it randomly.

Please contact us if you have size requirements.
Control method   RS232/DB9 Female Default not include, Only for output power adjustable model.
Add software control functions, please contact us.
Power supply   5V DC, <15W
