TTL modulation 650nm 5mw~150mw Rojo laser Module 16*60mm


ESPECIFICACIONES:
Name: TTL modulation 650nm 5mw~150mw Rojo laser Module 16*60mm
Longitud de onda de salida: 650nm
Potencia de salida: 5mW~150mw(Choice)
Forma láser: Dot
Tipo de láser: Visible laser, Rojo color
Color exterior: Black
Beam Divergence: 0.1mrad ~ 0.6mrad
Optical Systems: Optical Coated Glass
Spot Descripción: 1m department width spot diameter Φ0.5mm
Modulación: TTL modulation
Modulation frequency: 1Hz-1000KHz
Tensión de funcionamiento: DC 3V ~ 5V
Clase de láser: IIIB
Operating Temperature: -10℃~70℃
Storage Temperature: -40℃~80℃
Tamaño: Φ16mm x 60 mm
Continuous working time: > 12 hours(Good heat dissipation)
Garantía: 3 Months Factory warranty


TTL modulation Descripción:

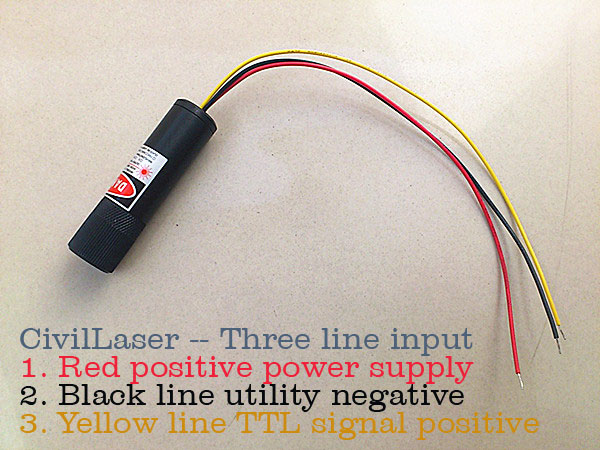

1 The red and yellow lines shorted, the module will be lit, in a continuous mode of operation;
2 To modulate the signal line negative black wire, positive connected to the yellow line, red line vacant, modulation module in working condition.
3 Signal input modulation frequency must be within the range 1000KHZ;


El paquete incluye:
1* TTL Módulo láser rojo
