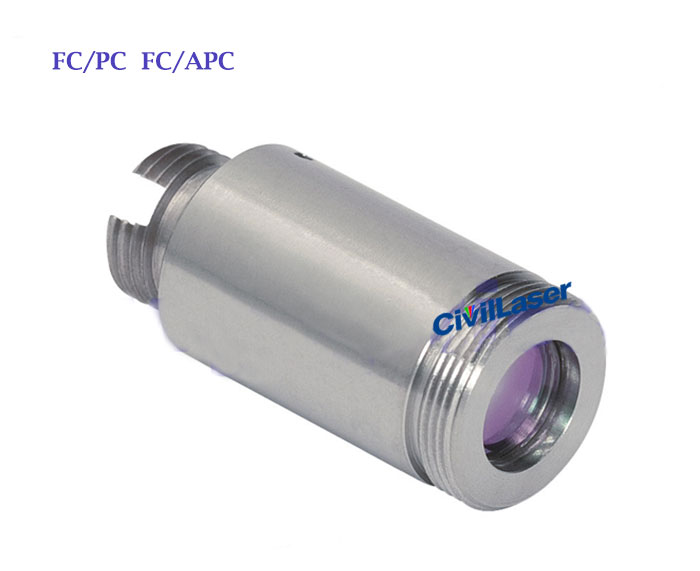

Colimador de fibra Focus Lens Diameter 6mm FC/PC FC/APC Fiber

Colimador de fibra Focus Lens Diameter 6mm FC/PC FC/APC Fiber

This product can be used for fiber collimation or for coupling focusing. The use of collimation, either single mode or multimode fiber can be used. If used as a coupling focus, it can only be used with multimode fiber (numerical aperture 0.12~0.22NA, core diameter ≥50μm).

[Especificaciones]
nombre del producto: Colimador de fibra
Model: COL6-550-PC /COL6-980-PC /COL6-1310-PC /COL6-550-APC /COL6-980-APC /COL6-1310-APC
Connector: FC/APC or FC/PC

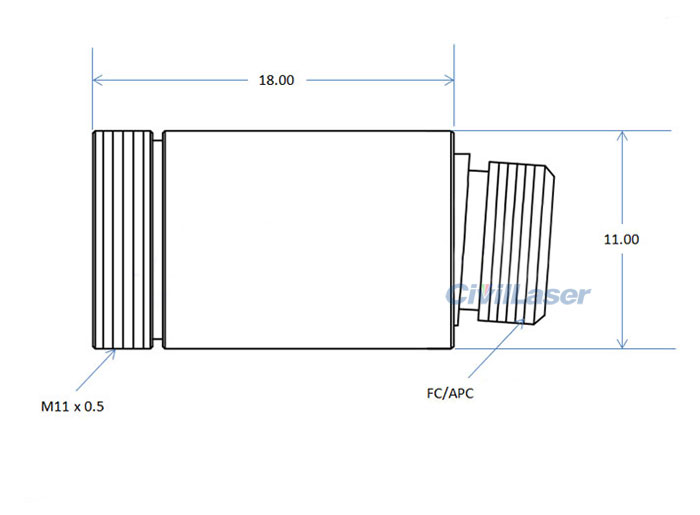

External Thread: M11 x 0.5
Lens  Diameter: 6 mm
Lens Focal Length: 15 mm
Optical Parameters: 1 aspheric lens
Working Temperature: -40~150 °C
Housing Material: copper nickel plated
