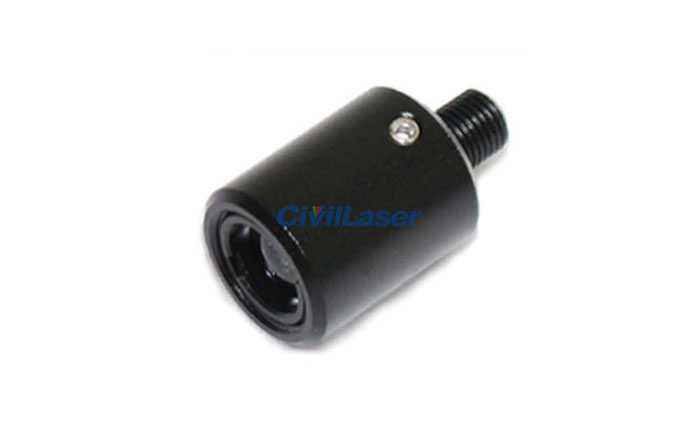

Fiber Focus Lens SMA905 Interface Colimador de fibra Lens Diameter 10mm 25.4mm
This product can be used for fiber collimation or for coupling focusing. The use of collimation, either single mode or multimode fiber can be used. If used as a coupling focus, it can only be used with multimode fiber (numerical aperture 0.22~0.37NA, core diameter ≥100μm).
[Features]
1. Easy to use with SMA905 interface
2. Longitud de onda: 200nm~2500nm quartz lens
3. Large lens diameter: 25.4mm
[Especificaciones]
| Parameter |
75X-UV |
84X-UV |
| Lens to Fiber End Face Distance(mm) |
22.00(adjustable ±5mm) |
100.00(adjustable ±10mm) |
| Lens to Sink Focus Distance(mm) |
18.00(adjustable ±5mm) |
100.00(adjustable ±10mm) |
| Lens Material |
Ultraviolet rock fused quartz |
Ultraviolet rock fused quartz |
| Use Wavelength(nm) |
185~2500 |
185~2500 |
| Outer Diameter(mm) |
16 |
36 |
| Lens Diameter(mm) |
10 |
25.4 |
| Interface |
SMA905 |
SMA905 |
| Compatible Aperture |
0.22~0.37NA |
0.22~0.37NA |
| Shell Material |
Aluminum alloy |
Aluminum alloy |
| Operating Temperature |
-20~150°C No condensation |
-20~150°C No condensation |
| Fixed Way |
Outer diameter 16mm |
Thread M4 or outer diameter 30mm |

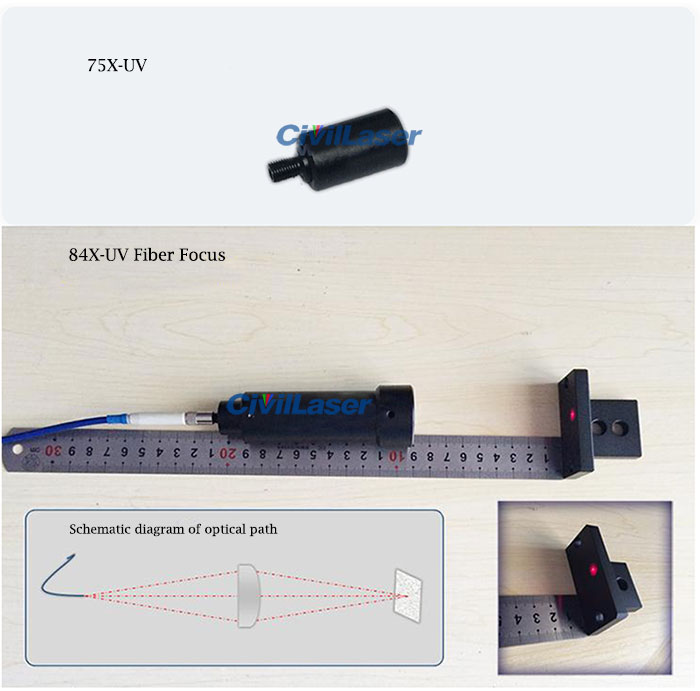

Optical focusing lens in the optical path function:
1. The fiber optic focusing lens can reconverge the collected light from the fiber to a point;
2. The point source can be coupled to the fiber (multimode fiber ≥100um only);
