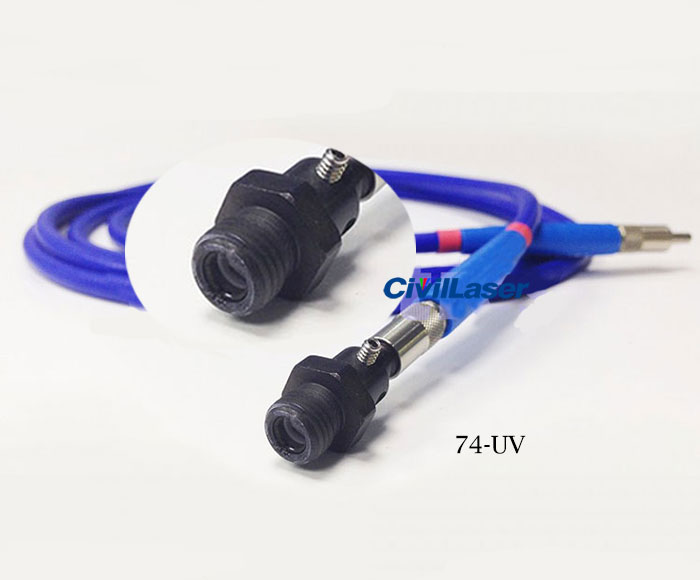

Colimador de fibra SMA905 Connector Fiber Focusing Lens 5 mm Lens Diameter

Colimador de fibra SMA905 Connector Fiber Focusing Lens 5 mm Lens Diameter

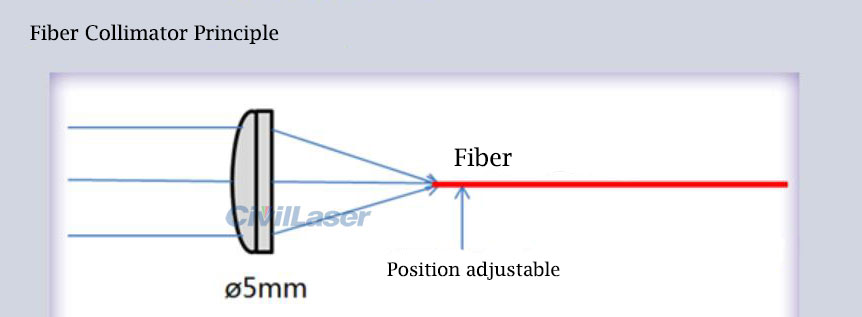

This product can be used for fiber collimation or for coupling focusing. The use of collimation, either single mode or multimode fiber can be used. If used as a coupling focus, it can only be used with multimode fiber (numerical aperture 0.22~0.37NA, core diameter ≥100μm).

[Features]
1. This collimator is used for SMA905 connector and Ø6.35 metal head fiber for easy focus adjustment. Consistent with Ocean's 74 Series lenses, it is compatible with other optical devices.
2. Longitud de onda: 200nm~2500nm quartz lens.
3. After the beam passes through the lens, the divergence angle is <2°.
4. Adjustable focal length(±5mm).
5. Easy use.

[Especificaciones]
nombre del producto:  Colimador de fibra
Model: 74-UV

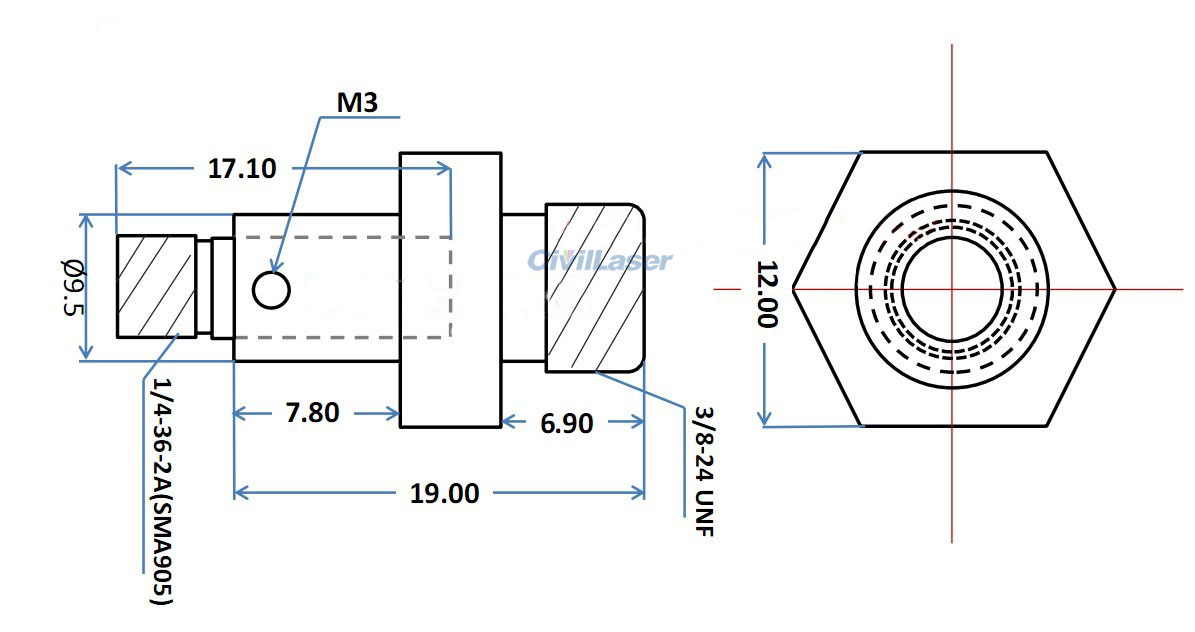

Connector: SMA905, TA connector (6.35mm diameter metal head), 3/8-24
External Thread: 3/8-24
Middle Hex Tamaño: 12mm
Lens Diameter: 5 mm
Lens Focal Length: 10 mm
Wavelength Range: 200-2500 nm
Working Temperature: -40~150 °C
Housing Material: aluminum, black.
