QSI 850nm 5mW Diodo láser IR Laser QL85D6SX TO-18 5.6mm

QSI 850nm 5mW Diodo láser IR Laser QL85D6SX TO-18 5.6mm

QL85D6SA is a MOCVD grown 850nm band AlGaAs laser diode with quantum well structure. It's an attractive light source, with a typical light output power of 5mW for industrial optical module and sensor applications.

[Features]
1. Longitud de onda: 850nm(typ.)
2. Optical Power Output: 5mW CW
3. Package Type: TO-18 (5.6mm)
4. Built-in Photo Diode for Monitoring Diodo láser

[Applications]
1. Motion Recognition Sensor
2. Industrial Optical Module

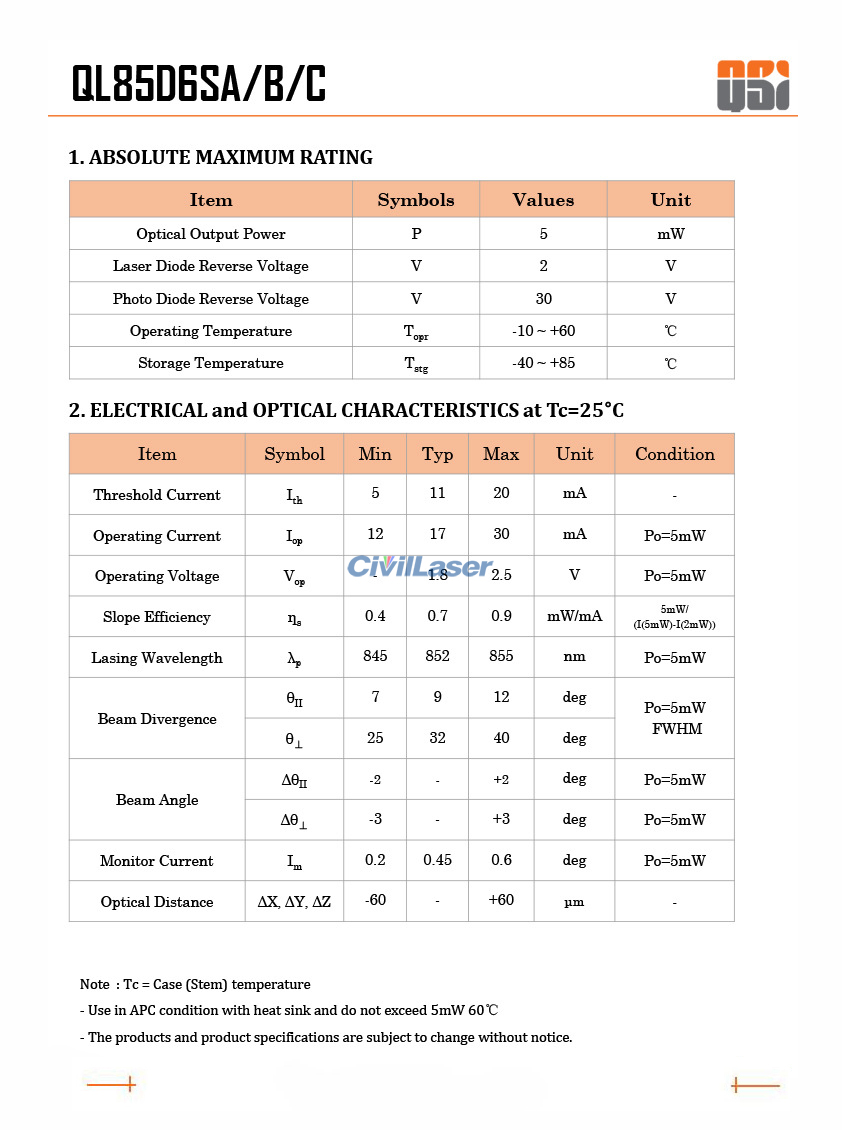

[Specification]
nombre del producto: Diodo láser
Model: QL85D6SX
Longitud de onda: 850nm
Potencia de salida: 5mW
Diodo láser Reverse Voltage: 2V
Photo Diode Reverse Voltage: 30V
Operating Current: 17mA
Tensión de funcionamiento: 1.8V
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃

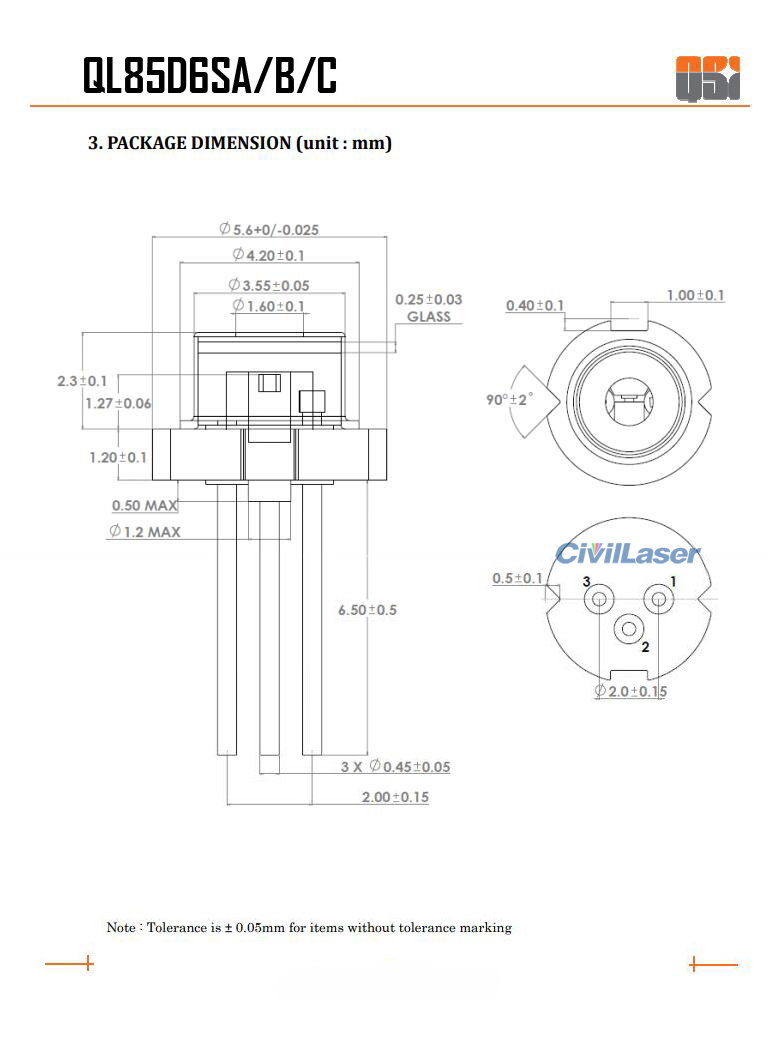

Package: TO18 (Φ5.6mm)
